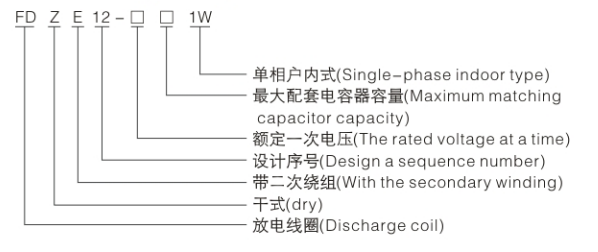

Type designation
Technical data
| Type | Rated voltage ratio(V) | Accuracy class and rated output(VA) | Discharge capacity (Mvar) | rated insulation level(kV) | ||
| 0.5 | 1 | 6P | ||||
| FDZE11/38.5/√3(4~10)1W | 38.5/√3/0.1 38.5/√3/0.1/√3/0.1/3 | 50 | 100 | 100 | 4~9 | 40.5/95/200 |
| FDZE11/41.5/√3(1.7-4)1W | 41.5/√3/0.1 41.5/√3/0.1/√3/0.1/3 | |||||
Note: such as the scope of technical parameters in the table above that, please determine again after consultation with our company.

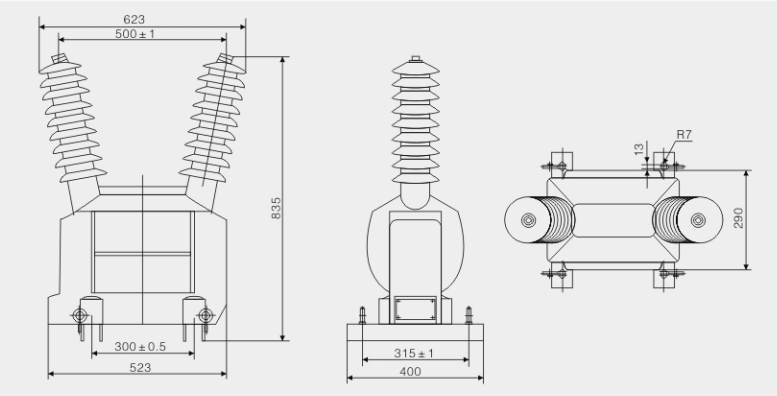

Drawing and dimention

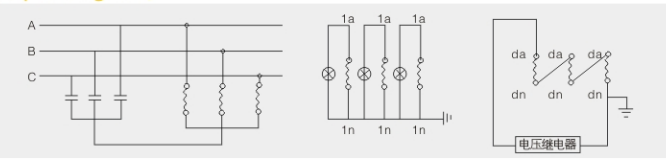

Principle diagram
