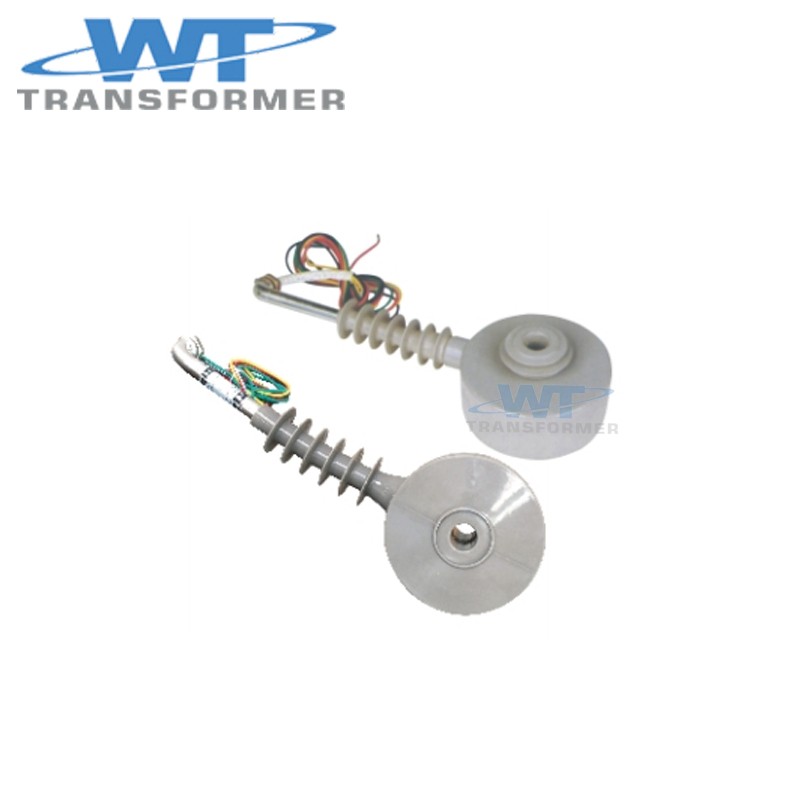

CAN Outdoor Current Transformer LZW32-10G1(12)、LZW32-10G2C

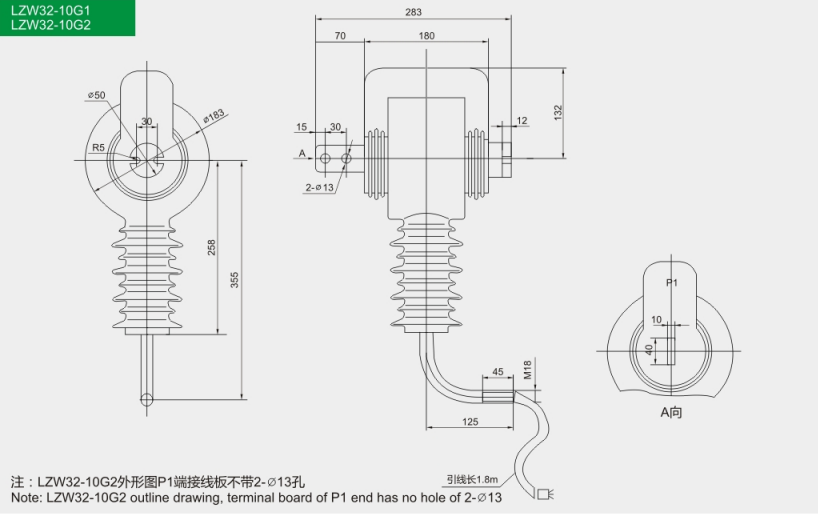

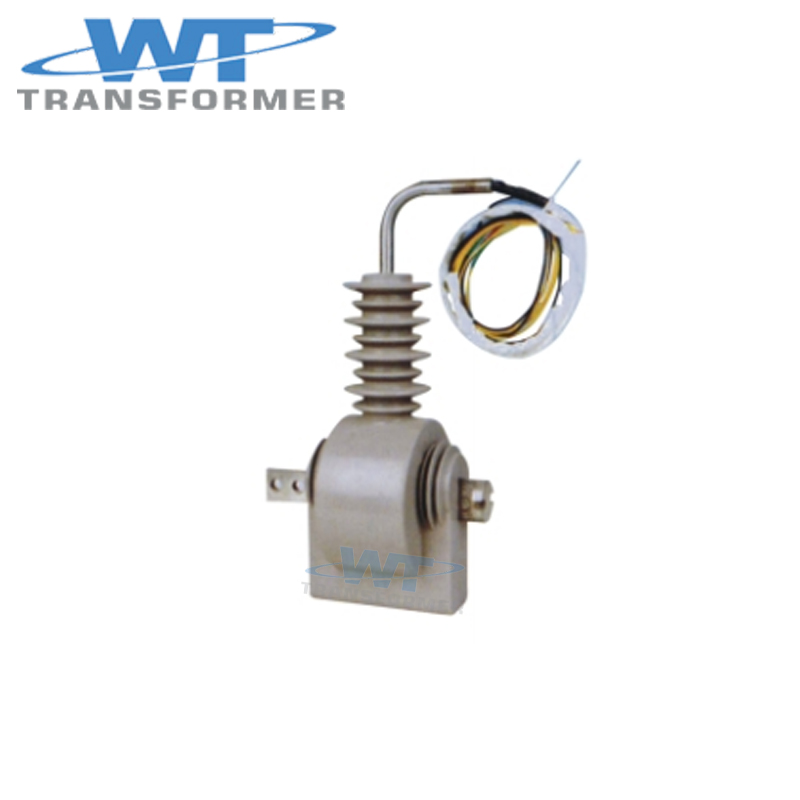

LZW32-10G1(12) LZW32-10G2C+.jpg

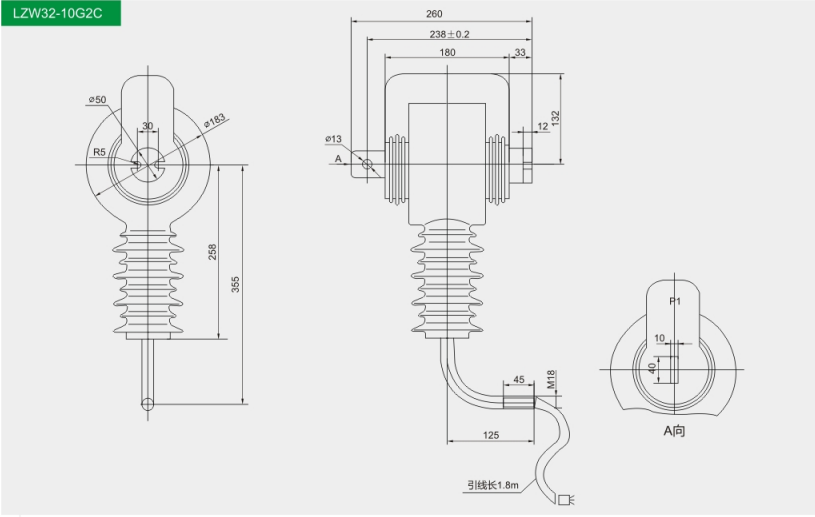

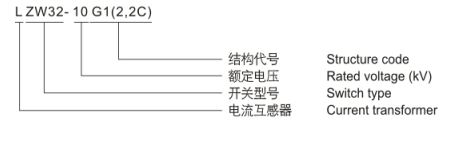

Type designation

Technical data

LZW32-10G1、LZW32-10G2、LZW32-10G2C Type technical; data1: two windings

Rated primary current(A)	Accuracy classes combination	Rated secondary output(VA)			1s thermal current (kA)	Rated dynamic current (kA)
Rated primary current(A)	Accuracy classes combination	0.2	0.5	3	1s thermal current (kA)	Rated dynamic current (kA)
30	0.2/3 0.5/3	10	10	50	2.7	6.75
40					4	10
50					6.75	16.8
75					9	22.5
100					11.2	28
150					18	45
200					22.5	56.2
300					31.5	78.7
400-630					56.5	140

LZW32-10G1、LZW32-10G2、LZW32-10G2C Type technical; data2: single winding double tranformation ratio

Rated primary current(A)	Accuracy classes combination	Rated secondary output(VA)	1s thermal current (kA)	Rated dynamic current (kA)
50-100	3	50	9	22.5
75-150			13.5	33.7
100-200			18	45
150-300			27	67.5
200-400			36	90
400-630			56.5	140
