CSA High-voltage Power Metering Box JLS-6、10、35

CSA High-voltage Power Metering Box JLS-6、10、35

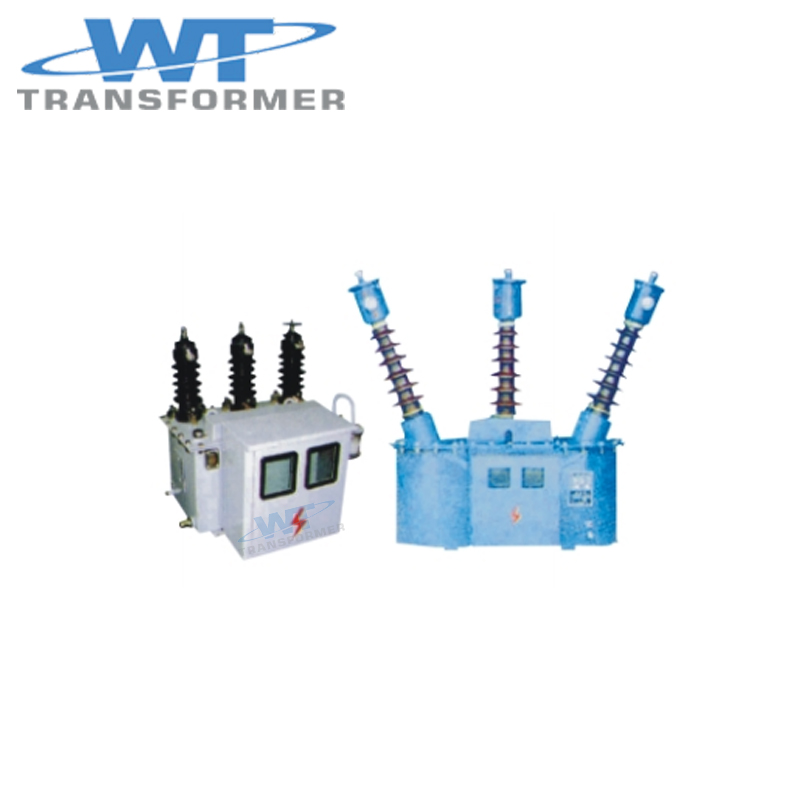

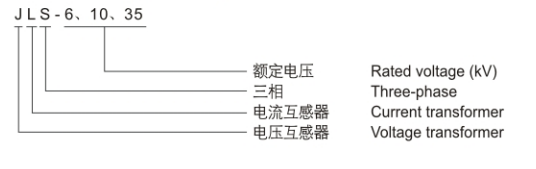

Type designation

Technical data

a.Rated voltage:6kV、10kV、35kV

b.Accurate grsfe: 0.5 and 0.2 0.5S and 0.2S

c.Rated ratio: ratio-voltage 3000/100、6000/100、10000/100、35000/100

ratio-current 5-300/5 (high ratio-current can made to order);

Type	Rated voltage ratio (kV)	Rated current ratio (kV)	Voltage transformer accurate grade and Rated output (VA)		Current transformer accurate grade and Rated output (VA)		Rated insulation level (kV)
Type	Rated voltage ratio (kV)	Rated current ratio (kV)	Class 0.2	Class 0.5	Class 0.2(S)	Class 0.5(S)	Rated insulation level (kV)
JLS-3 JLS-6 JLS-10	3000/100	5-300/5	20	25	10	10	3.6/24/75
	6000/100	5-300/5	20	25	10	10	7.2/32/75
	6300/110	5-300/5	20	25	10	10	7.2/32/75
	10000/100	5-300/5	25	25	10	10	12/42/75
JLS-35	35000/100	5-300/5	50	50	10	10	40.5/95/185

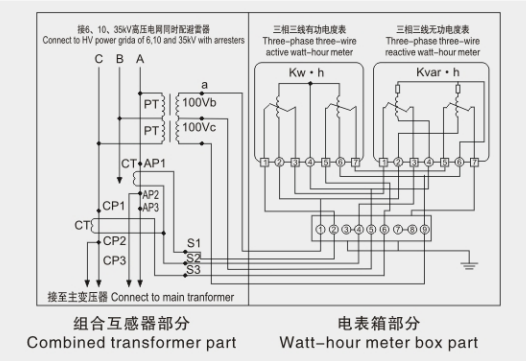

This product of high-voltage electric measuring tank has two types, single ratio and double ratio. In double ratio wiring case,heavy current ratio connects AP1, AP2 and CP1, CP2 and light current ratio connects AP3 and CP1, CP3. The schematic drawing is illustrated as follows.

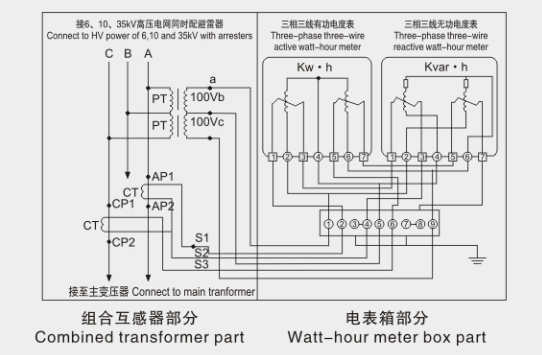

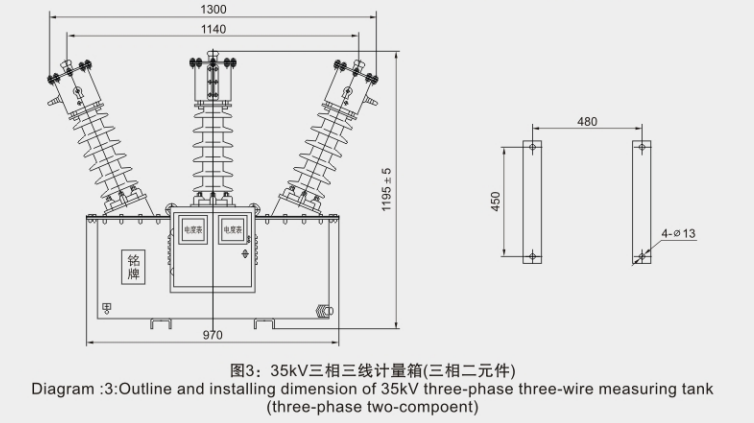

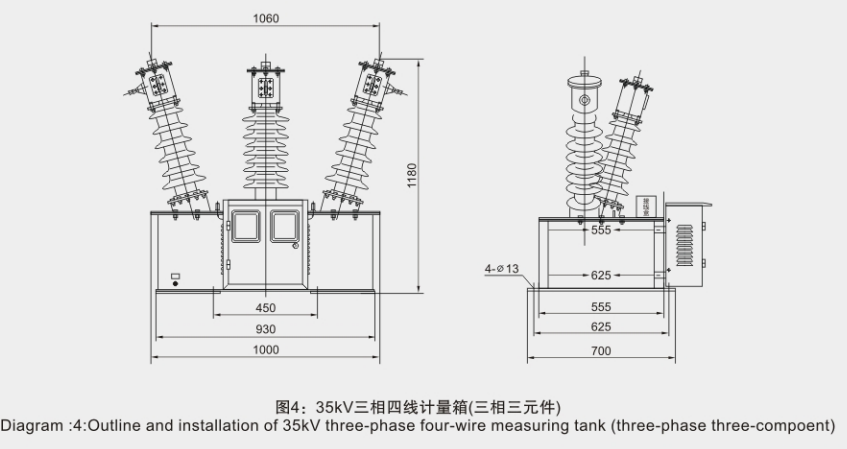

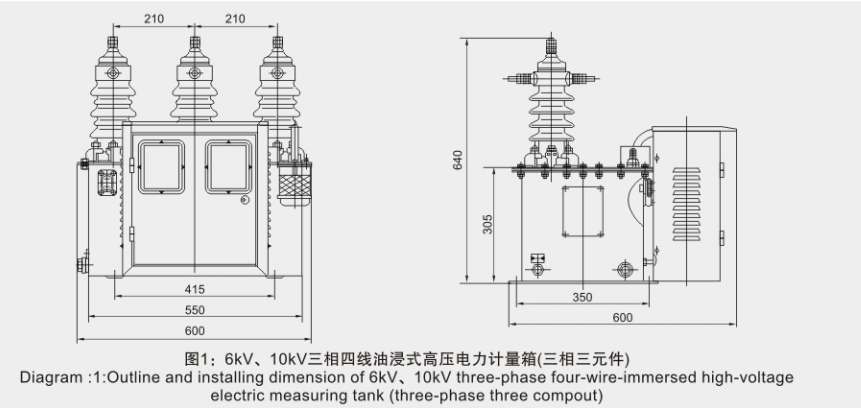

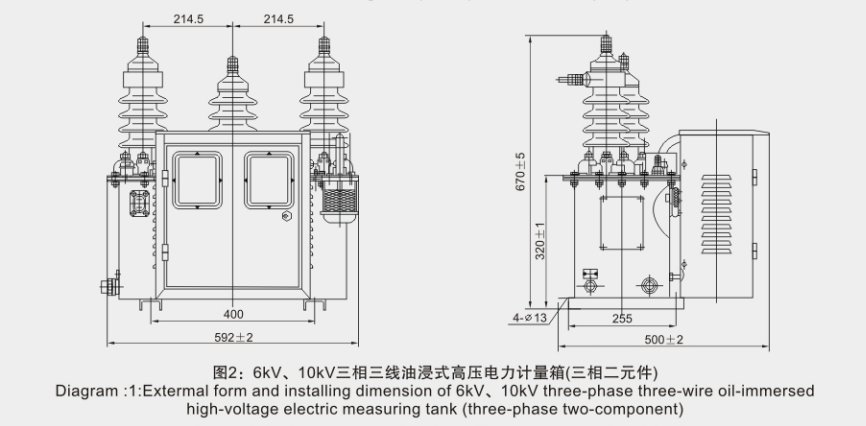

Drawing and dimention
