Technical data
| Product category | Measuring current transformer | Protective current transformer | ||||
| Rated current than I2/11(A/A) | Accurate level rated load (VA) | Accurate level and rated load (VA) | ||||
| 0.5 | 1.0 | 3.0 | 10P15 | 10P10 | 10P5 | |
| 50/1 | 1 | 2 | 1.5 | |||
| 100/1 | 1 | 2.5 | 2.5 | 1 | 2.5 | |
| 150/1 | 1.5 | 2.5 | 3.75 | 1 | 1.5 | 3.75 |
| 100/5 | 2.5 | 3.75 | 1 | 2.5 | ||
| 150/5 | 2.5 | 3.75 | 5 | 1.5 | 5 | |
| 200/5 | 2.5 | 3.75 | 5 | 2.5 | 7.5 | |
| 300/5 | 5 | 7.5 | 10 | 1 | 5 | 10 |

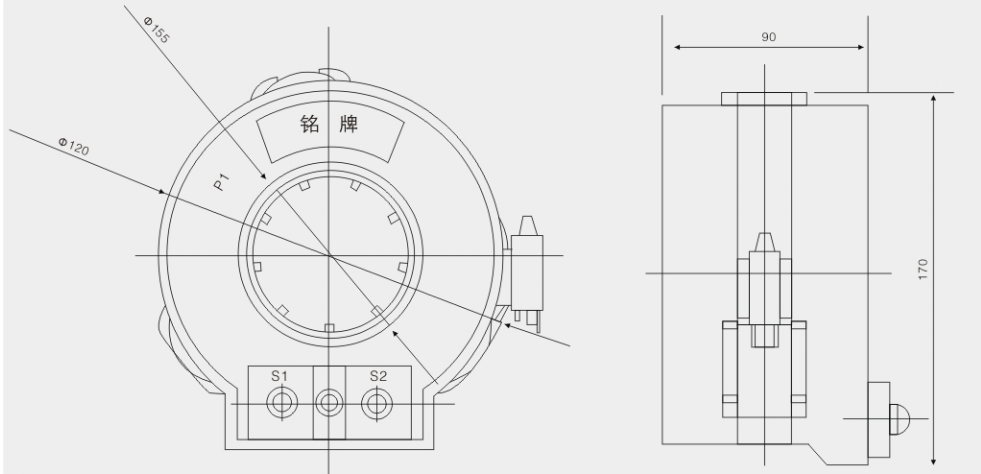

Drawing and dimention
