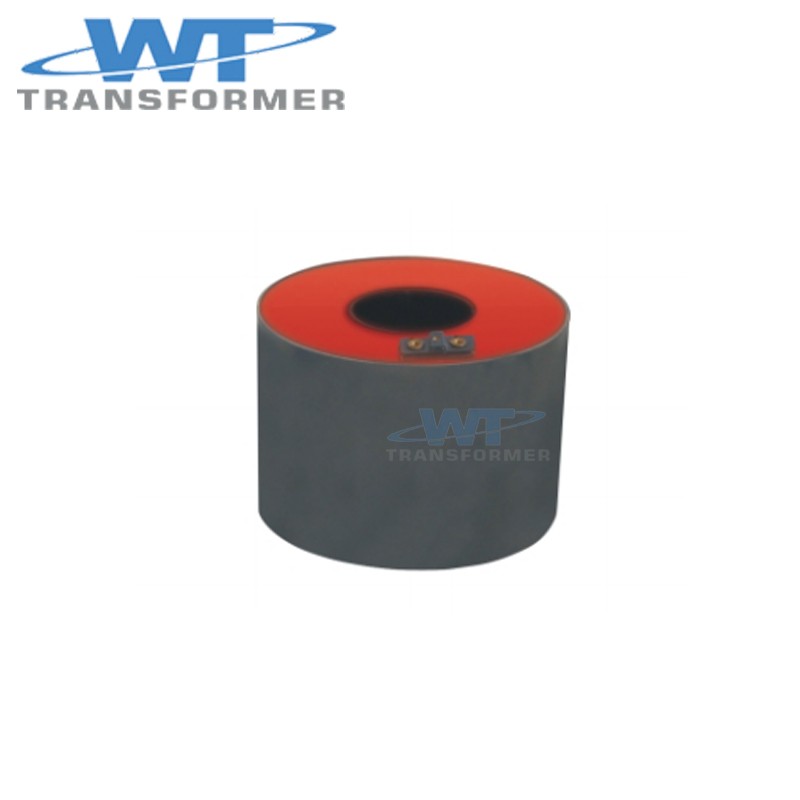

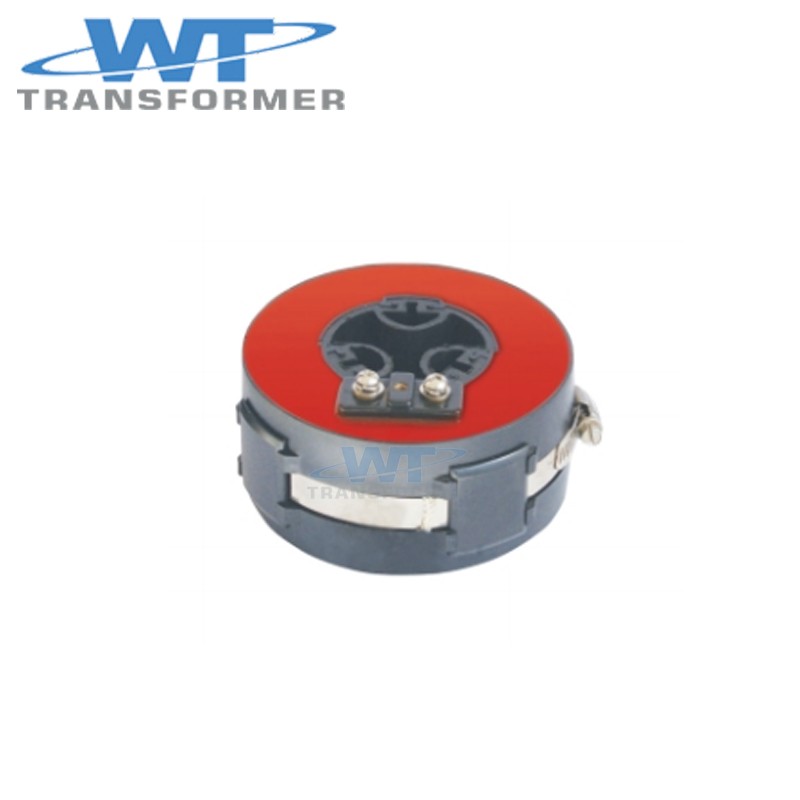

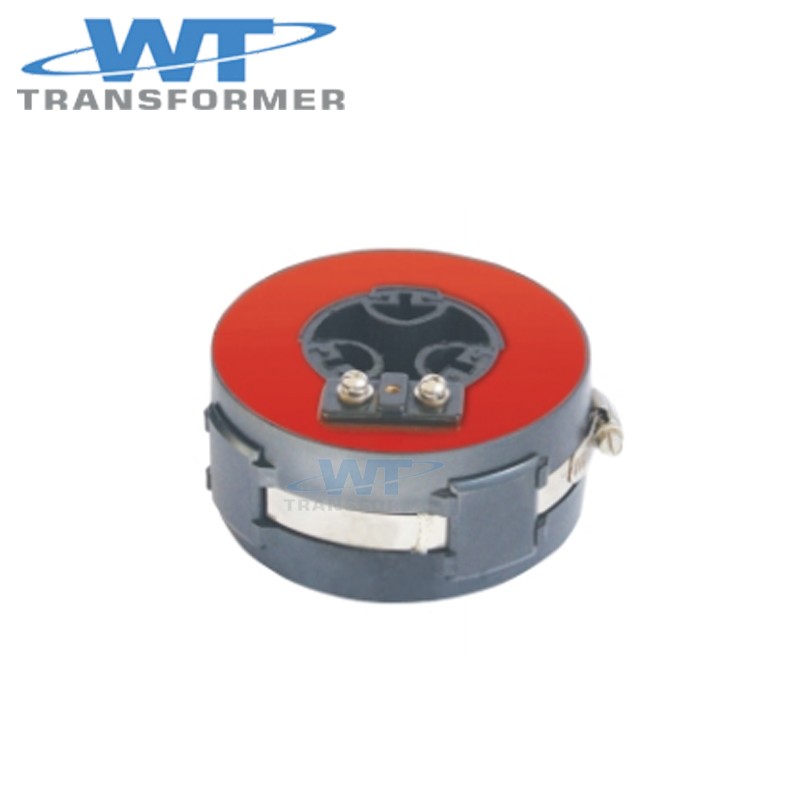

ANSI Wear Core Type Current Transformer LDZC8-10


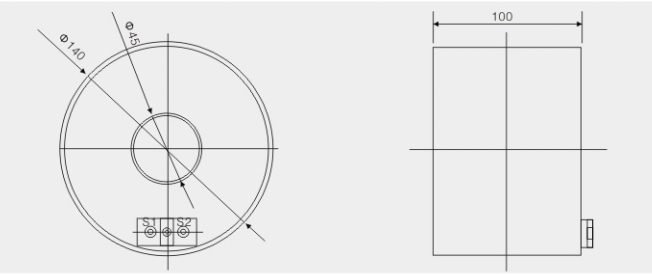

Technical data

Current transformer secondary rated current 1A or 5A

Product category	Measuring current transformer Protective current transformer			Protective current transformer			Double winding current transformer
Rated current than I2/I1(A/A)	Accurate level rated load (VA)			Accurate level and rated load (VA)			Compound accurate level and rated load (VA)
Rated current than I2/I1(A/A)	0.2S	0.2	0.5	10P20	10P15	10P10	0.2S	0.5	10P15	10P10
20			1					1
30			2.5					2.5		1
40			3.75			1		3.75		1
50			3.75			2.5		3.75		2.5
75	1	2.5	3.75	1		2.5		3.75		2.5
100	2.5	3.75	5	2.5	3.75	3.75	2.5	5	2.5	3.75
150	5	5	7.5	3.75	5	5	5	7.5	2.5	5
200	10	10	10	5	7.5	7.5	10	10	5	7.5
300	10	10	10	10	10	15	10	10	5	10
400	10	10	10	15	20	25	10	10	10	15
500	15	15	15	15	20	25	15	15	10	15
600	15	15	15	15	20	25	15	15	10	15
