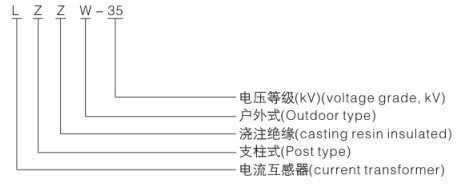

Type designation
Technical data
| Rated primary current ( A ) | Accuracy class combination | Rated output(VA) | Short-time thermal current (kA/S) | Rated dynamic current(kA) | ||||
| 0.2S | 0.2 | 0.5 | 10P10 | 10P15 | ||||
| 5~100 | 0.2 0.2S 0.5 0.5S 10P10 10P15 | 10 | 10 | 15 | 15 | 10 | 100I1n | 250l1n |
| 150 | 13.5 | 34 | ||||||
| 200 | 18 | 45 | ||||||
| 300 | 27 | 67.5 | ||||||
| 400 | 30 | 75 | ||||||
| 500 | 36 | 90 | ||||||
| 600 | ||||||||
| 750~1000 | 40 | |||||||

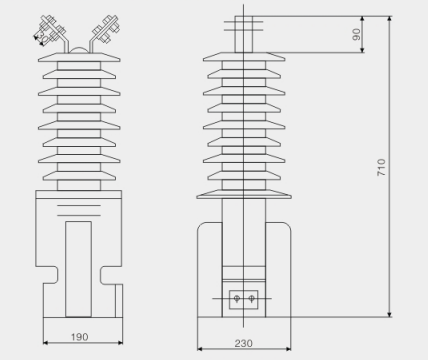

Drawing and dimention
