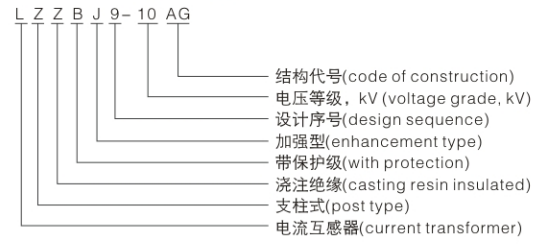

Type designation
Technical data
| Rated primary current(A) | Accuracy class combination | Rated output(VA) | Short-time thermal current(kA/1s) | Rated dynamic current(kA) |
| 20~100 | 0.2/0.2/5P10 0.2/0.5/5P15 0.2/0.5/5P20 0.2/5P10/10P15 0.5/5P10/10P20 0.2/0.5/10P10/10P10 | 10/10/15 10/10/15 10/10/15 10/15/15 10/15/15 10/10/15/15 | 150I1n | 375I1n |
| 150~200 | 21.5 | 54 | ||
| 300~400 | 31.5 | 80 | ||
| 800 | 63 | 130 | ||
| 1000~1250 | 80 | 160 | ||
| 1500~3000 | 100 | 160 |

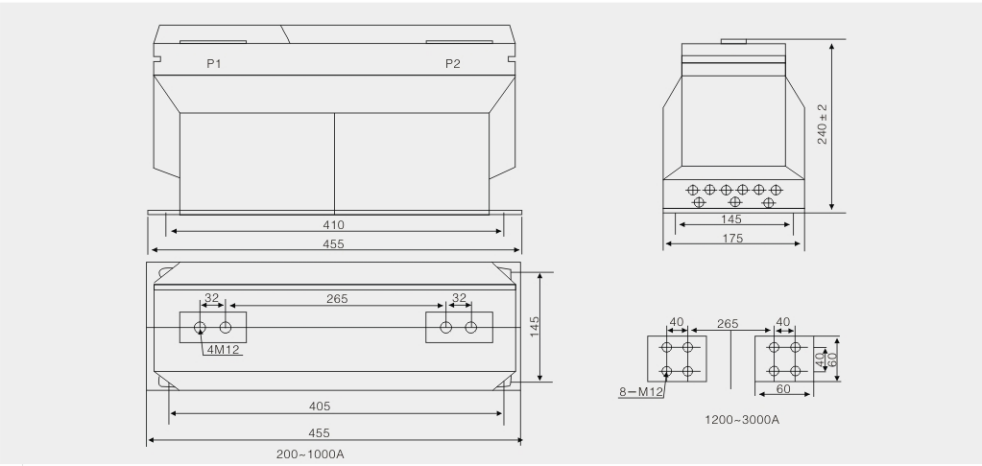

Drawing and dimention
