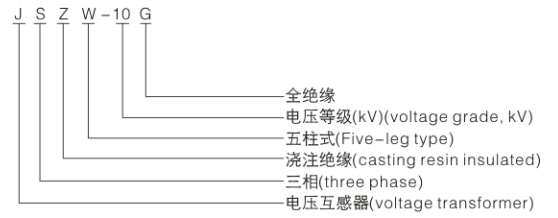

Type designation
Technical data
| Type | Rated voltage ratio(V) | Accuracy class and rated output(VA) | Max output(VA) | Rated insulation level(kV) | |||
| 0.2 | 0.5 | 1 | 6P | ||||

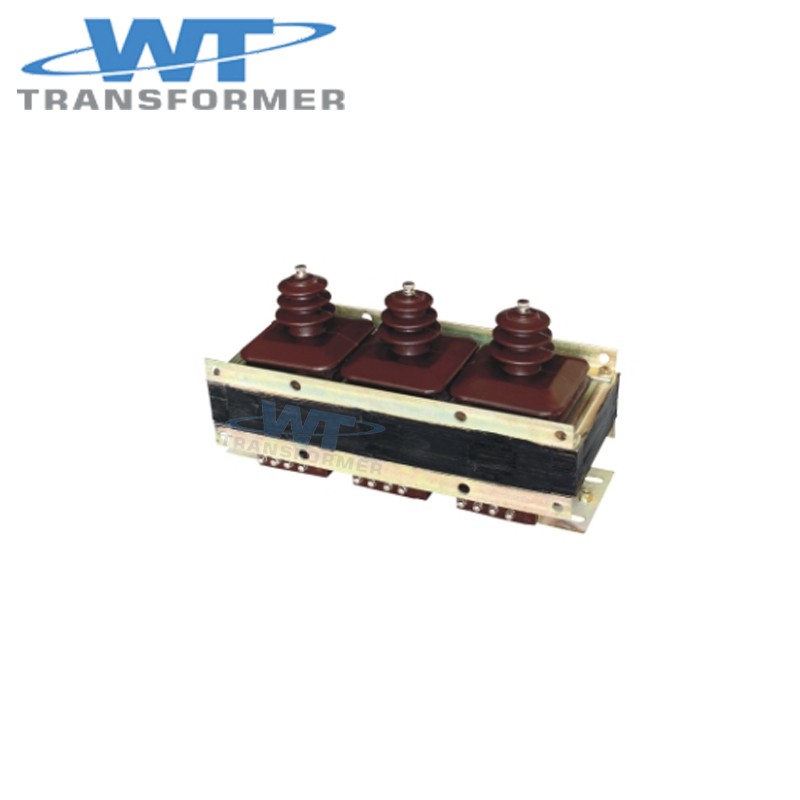

| JSZW-10G JSZW-6G JSZW-3G | 10000/√3/100/√3/100/3 | 15 | 30 | 60 | 50 | 300 | 12/42/75 |
| 6000/√3/100/√3/100/3 | 7.2/32/60 | ||||||
| 3000/√3/100/√3/100/3 | 3.6/25/40 | ||||||

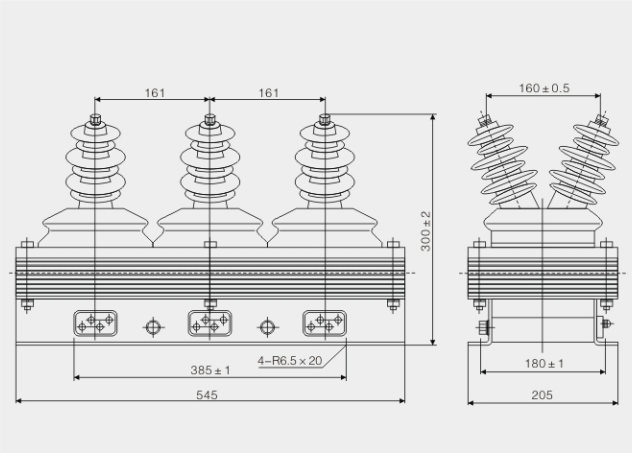

Drawing and dimention

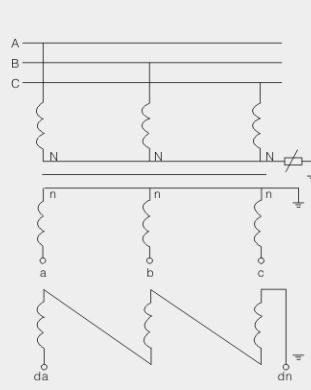

Principle diagram
