Technical data
| Product category | Measuring current transformer | Protective current transformer | Double winding current transformer | |||||||
| Rated current than I2/I1 (A/A) | Accurate level rated load (VA) | Accurate level and rated load (VA) | Compound accurate level and rated load (VA) | |||||||
| 0.2 | 0.5 | 1 | 10P15 | 10P10 | 10P5 | 0.5 | 1 | 10P10 | 10P5 | |
| 20/5 | 1.5 | 1 | 2.5 | 1 | ||||||
| 100/5 | 1 | 2 | 2.5 | 2 | ||||||
| 200/5 | 3.75 | 5 | 2.5 | 5 | 2 | 3.75 | ||||
| 300/5 | 2.5 | 5 | 7.5 | 3.75 | 5 | 2.5 | 5 | |||
| 400/5 | 2.5 | 5 | 10 | 7.5 | 5 | 7.5 | 2.5 | 5 | ||
| 500/5 | 5 | 7.5 | 15 | 10 | 7.5 | 10 | 3.75 | 7.5 | ||
| 600/5 | 5 | 10 | 15 | 10 | 7.5 | 10 | 3.75 | 7.5 | ||

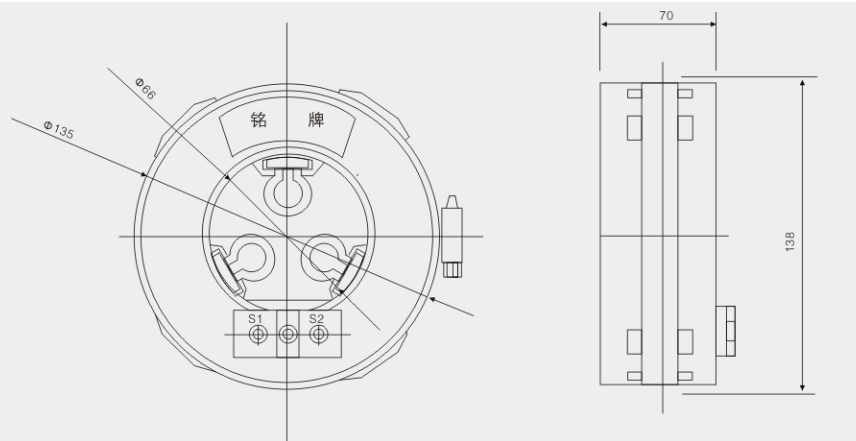

Drawing and dimention
