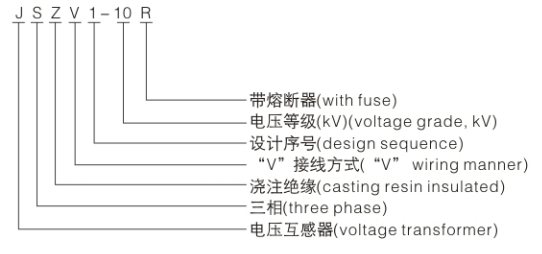

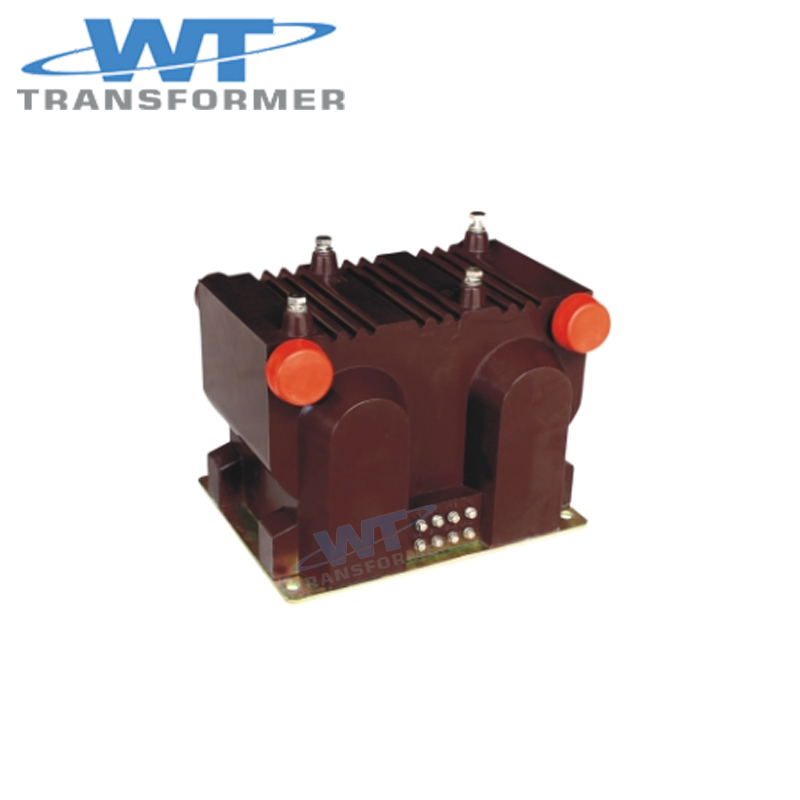

Type designation
Technical data
Form1:technical data of voltage transformer for measuring
| Type | Rated voltage ratio(V) | Accuracy class and rated output(VA) | Maxoutput(VA) | Rated insulation level(kV) | |
| class 0.2 | class 0.5 | ||||
| JSZV1-10R | 10000/100 | 20 | 50 | 500 | 12/42/75 |
| JSZV2-10R | 10000/100 | 20 | 50 | 12/42/75 | |
| JSZV3-10R | 10000/100 | 12/42/75 | |||
| JSZV1-6R | 6000/100 | 20 | 50 | 500 | 7.2/32/60 |
| JSZV2-6R | 6000/100 | 7.2/32/60 | |||
| JSZV3-6R | 6000/100 | 7.2/32/60 | |||
| Type | Rated voltage ratio(V) | Short time Max output power(VA) | Rated insulation level(kV) |
| JSZV1-10R | 10/0.1/0.22 | 500 | 12/42/75 |
| JSZV2-10R | 10/0.1/0.22 | 500 | 12/42/75 |
| JSZV3-10R | 10/0.1/0.22 | 12/42/75 | |
| JSZV1-6R | 6/0.1/0.22 | 500 | 7.2/32/60 |
| JSZV2-6R | 6/0.1/0.22 | 7.2/32/60 | |
| JSZV3-6R | 3/0.1/0.22 | 7.2/32/60 |
Note: voltage resistance should not exceed 15% for circuit breaker operating power

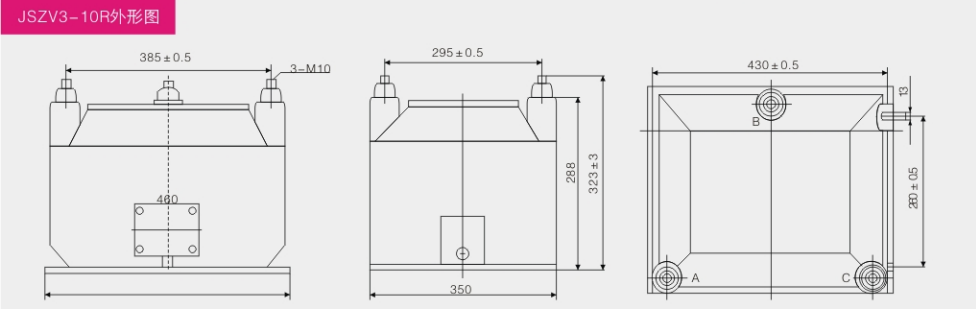

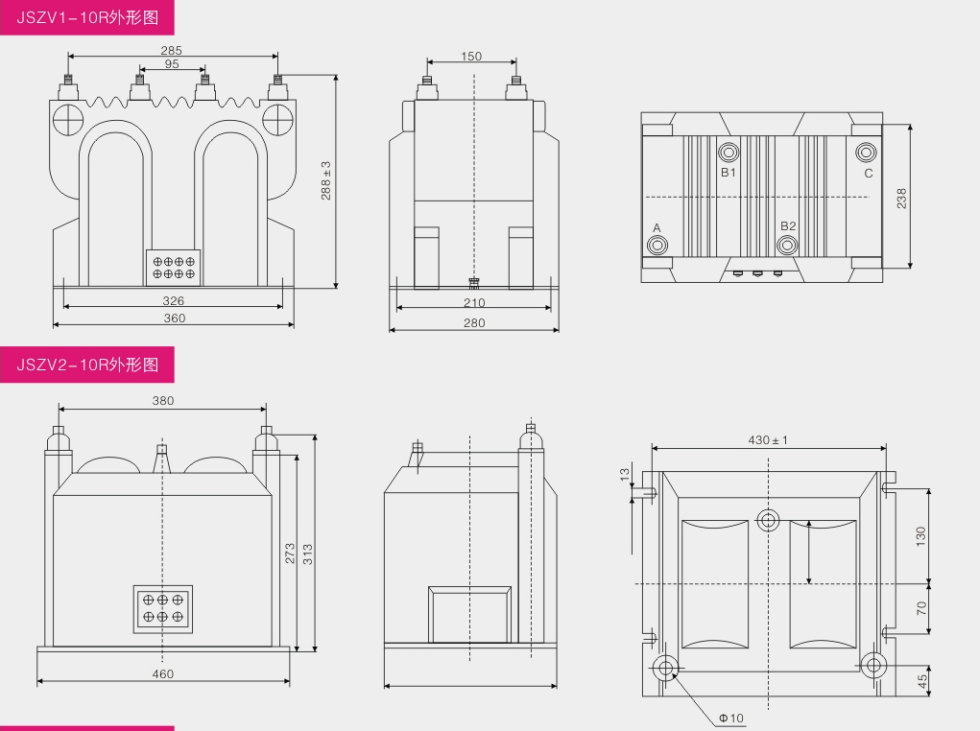

Drawing and dimention

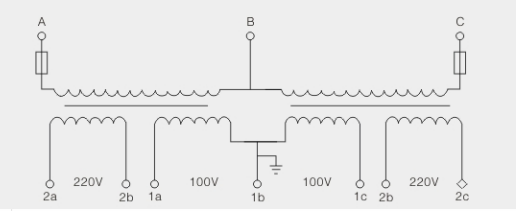

Principle diagram
