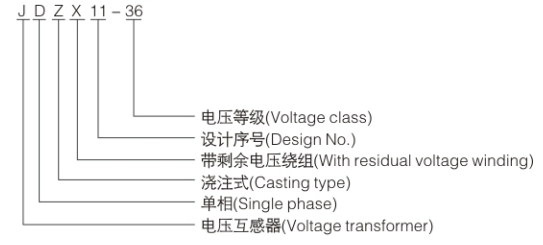

Type designation
Technical data
| Type | Rated voltage ratio(V) | Accuracy class combination | Rated output (VA) | Thermal limiting output(VA) | Rated insulation level(kV) | Remarks |
| JDZX11-36 | 33/√3/0.11/ √3/0.11/3 | 0.2:3P/3P | 75/60 | 600 | 36/70/170 | Same as "UNE35" |
| 0.5:3P/3P | 120/60 | |||||
| 1:3P/3P | 200/60 |

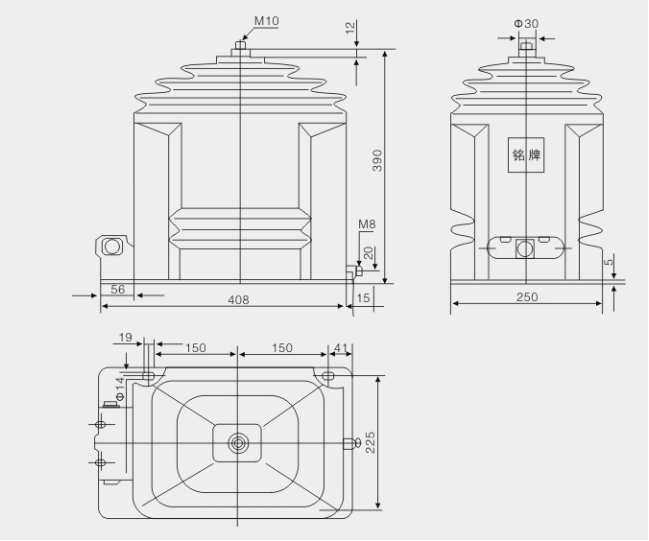

Drawing and dimention

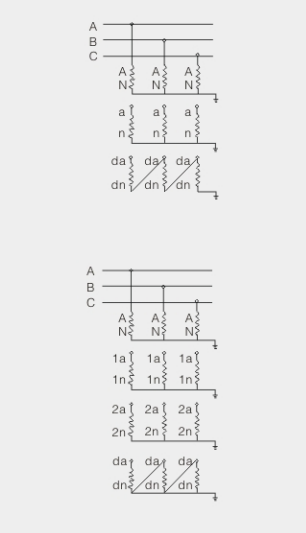

Principle diagram
