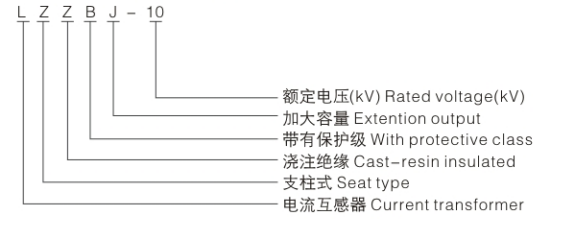

Type designation
Technical data
| Type | Rated transformation ration(A) | Accuracy Classes combination | Accuracy class and rated output | 1s thermal current (kA/1s) | Rated dynamic current(kA) | |||
| 0.2S | 0.2 | 0.5 | 10P15 | |||||
| LZZBJ-10 | 45797 | 0.2S/10P15 0.2/10P15 0.5/10P15 | 10 | 10 | 15 | 15 | 1.8 | 4.5 |
| 45807 | 2.7 | 6.75 | ||||||
| 14732 | 3.6 | 9 | ||||||
| 18384 | 4.5 | 11.25 | ||||||
| 27515 | 6.75 | 16.9 | ||||||
| 100/5 | 9 | 22.5 | ||||||
| 150/5 | 13.5 | 33.75 | ||||||
| 200/5 | 18 | 45 | ||||||
| 300/5 | 22.5 | 56.25 | ||||||
| 400/5 | 30 | 75 | ||||||
| 600/5 | 30 | 75 | ||||||
| 800/5 | 40 | 100 | ||||||
| 1000/5 | 50 | 125 | ||||||
| Note: Any special requirement can be negotiated with us, thermal and heat both stable. We can customized your requirement. | ||||||||

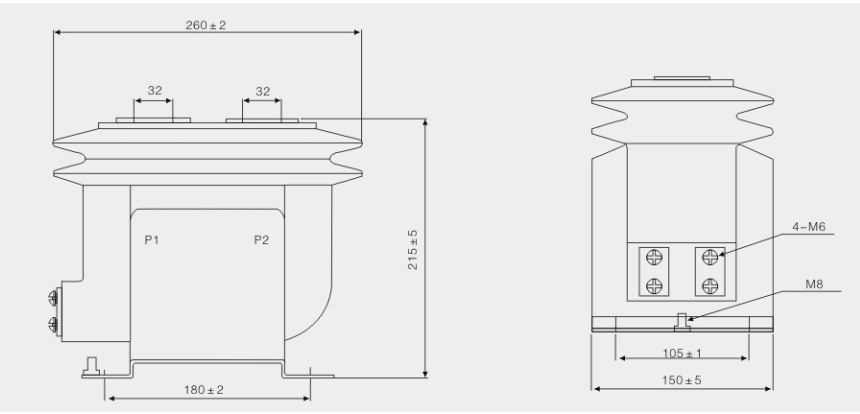

Drawing and dimention
