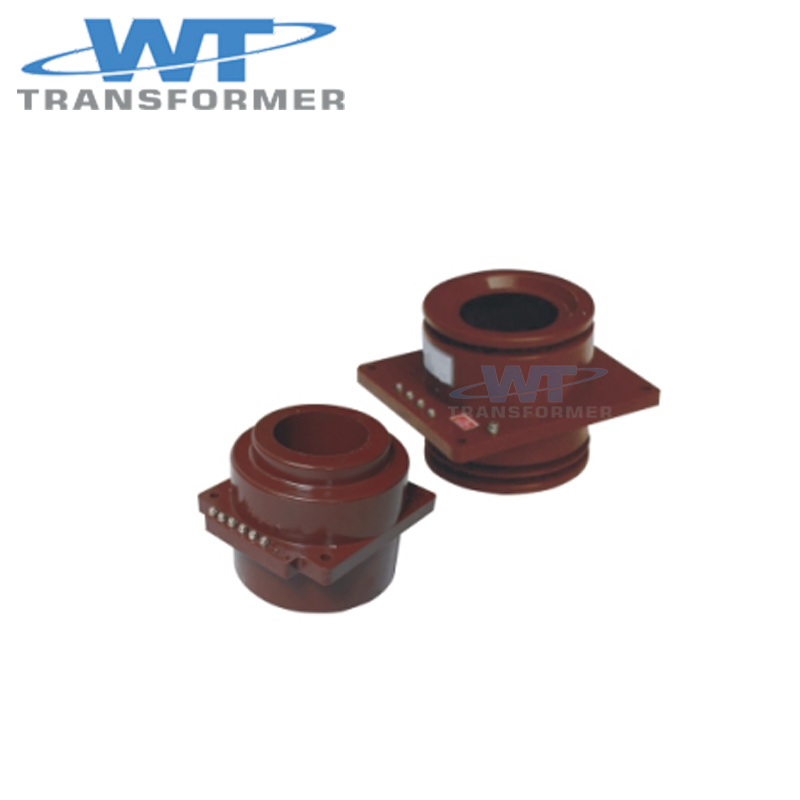

IEC Current Transformer LMZBJ1-10-1

IEC Current Transformer LMZBJ1-10-1

IEC Current Transformer LMZBJ1-10-1

IEC Current Transformer LMZBJ1-10-1

IEC Current Transformer LMZBJ1-10-1

IEC Current Transformer LMZBJ1-10-1

IEC Current Transformer LMZBJ1-10-1

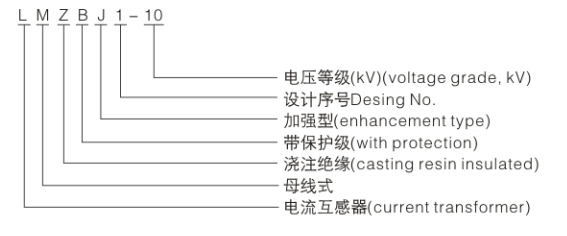

Type designation

Technical data

Rated primary current(A)	Accuracy class combination	Rated output(VA)
		0.2S	0.2	0.5	10P10	10P15
1000, 1500, 2000, 2500	0.2S/10P10 0.2S/0.2S	10	10	10	15	15
3000, 4000, 5000, 6000	0.5/10P10 0.2/0.5

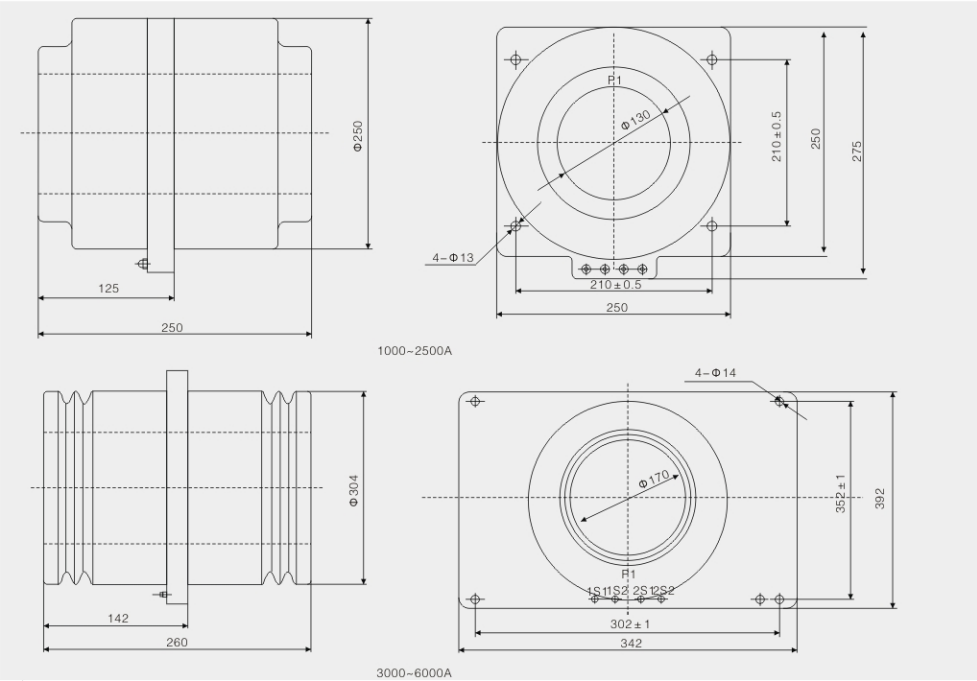

Drawing and dimention
