IEC Voltage Transformer JDZ(X)11-3 6 10、UNZ10

IEC Voltage Transformer JDZ(X)11-3 6 10、UNZ10

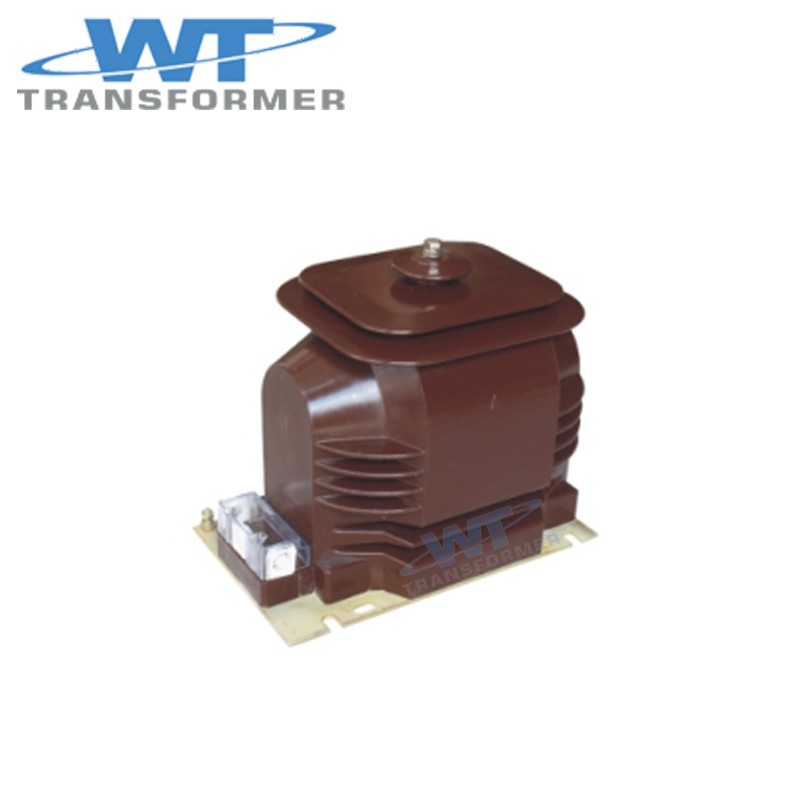

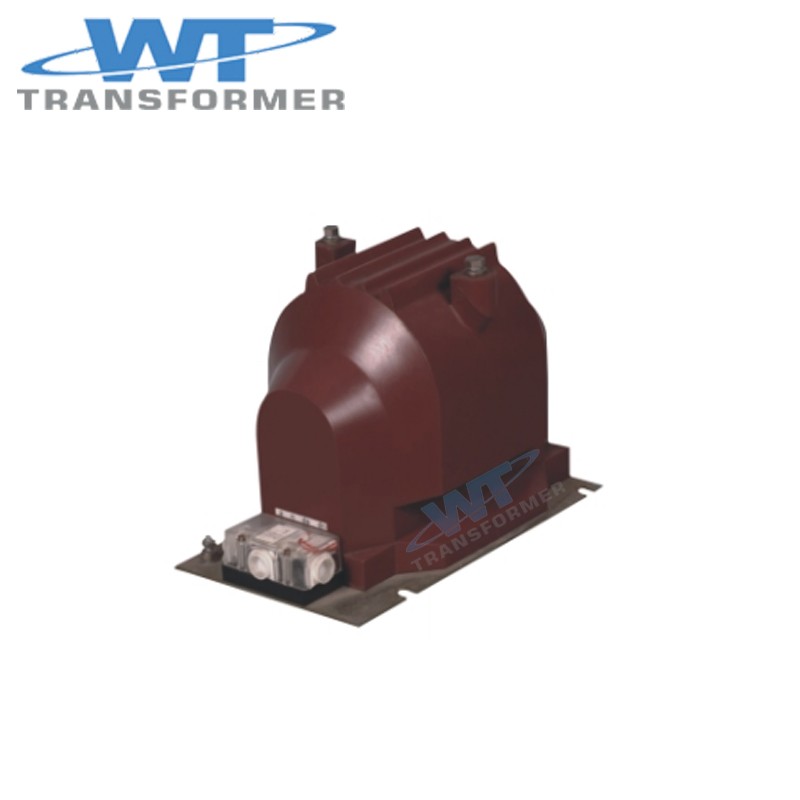

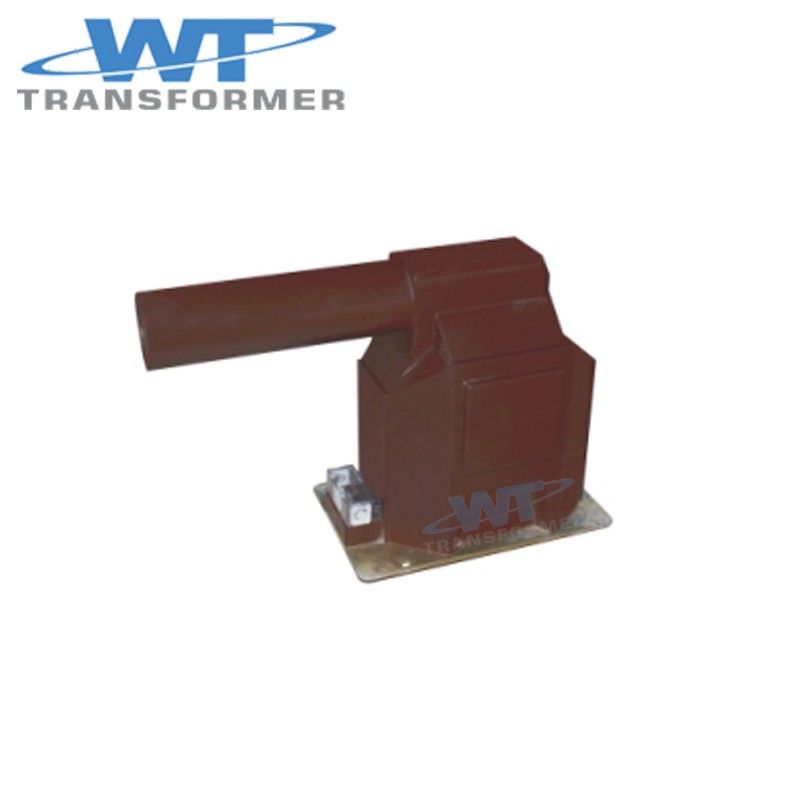

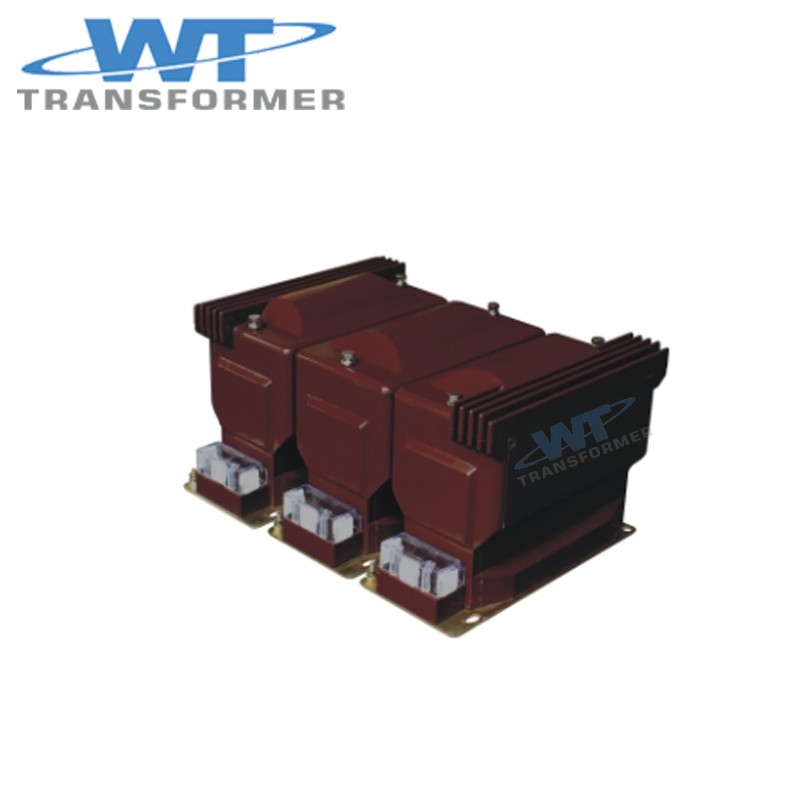

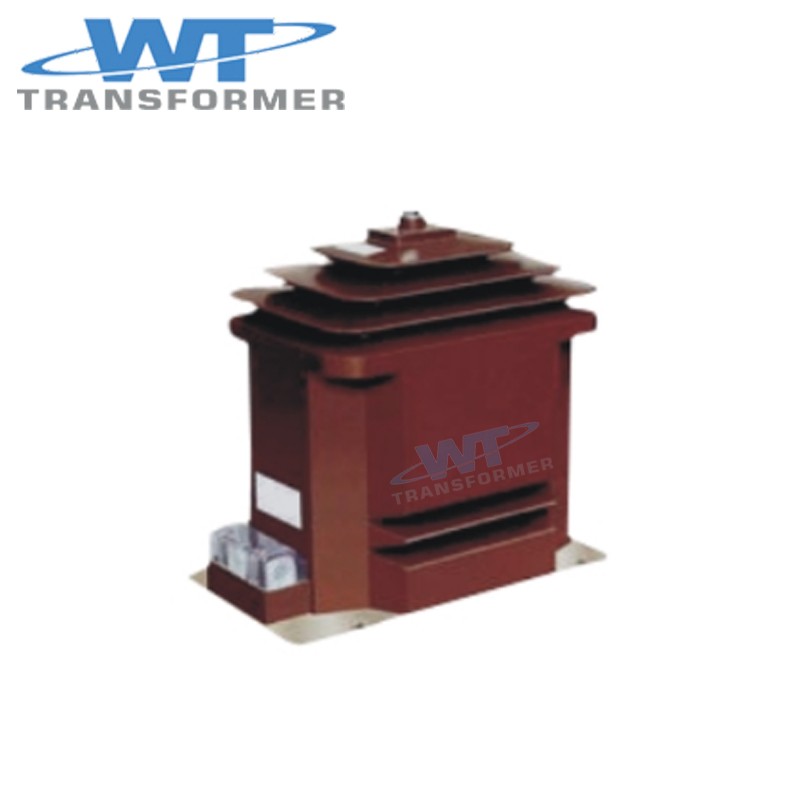

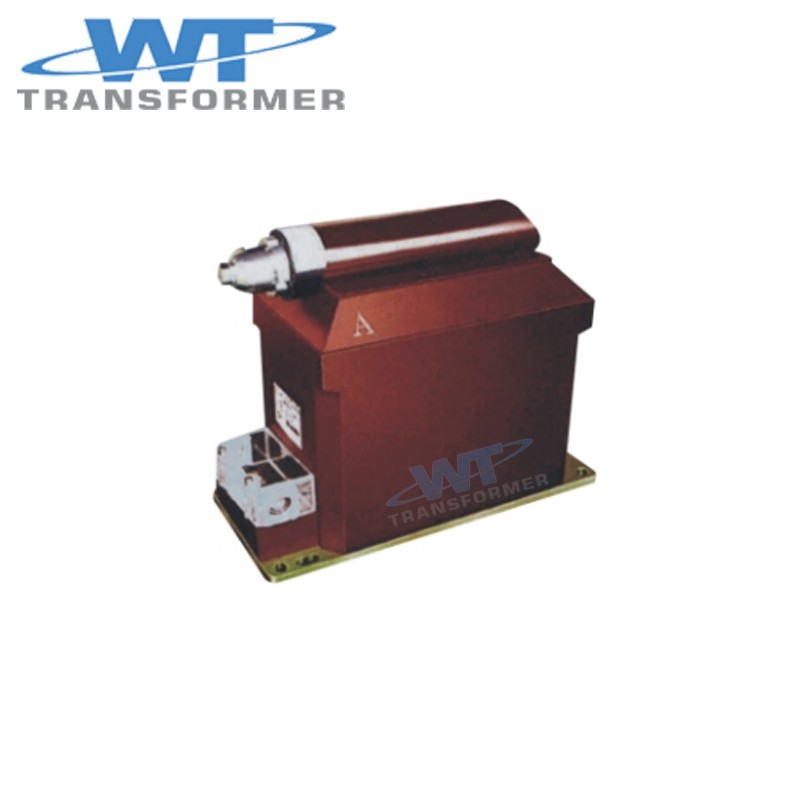

JDZ(X)11-3 6 10 UNZ10+.jpg

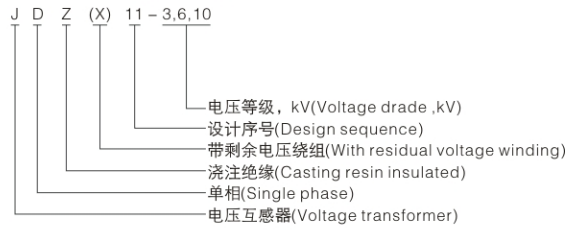

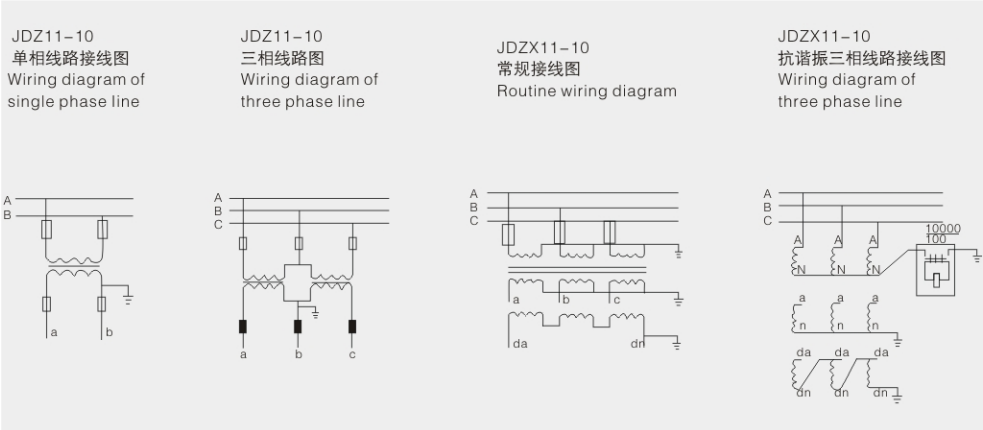

Type designation

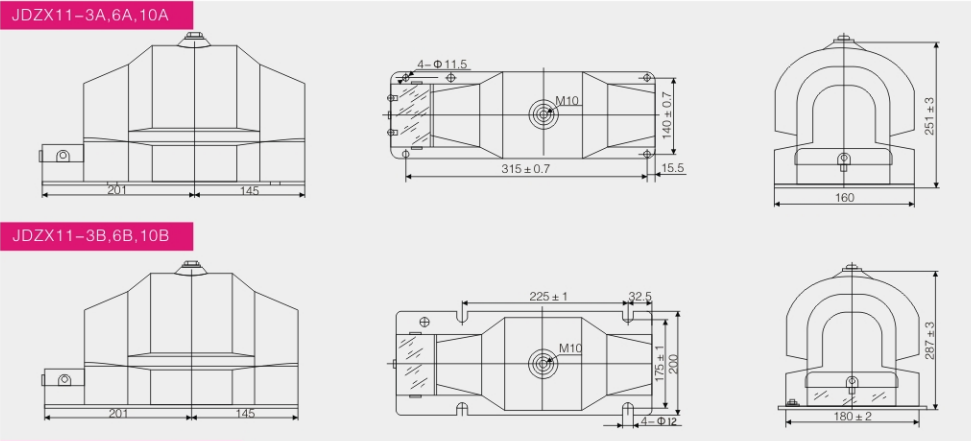

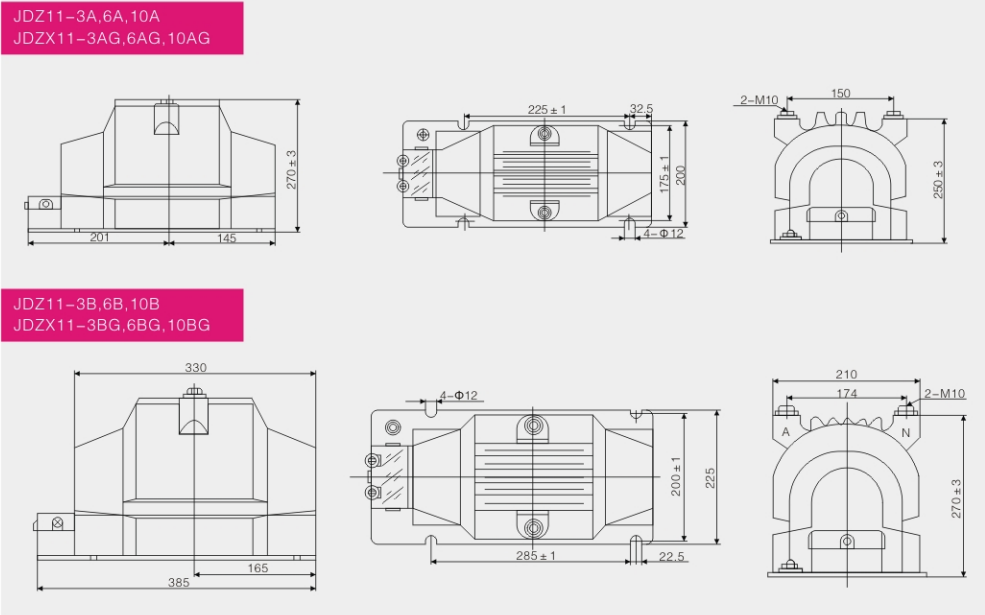

Technical data

1.Power factor of load: COSΦ=0.8(lagging);

2.Surface creepage distance: the product accords with the request of ll class;

3.The voltage transformers are in accordance with GB1207-1997《Voltage transformer》 and IEC 186 standards;

4.The other technical data see following table.

5.This series products include six kinds of voltage transformers, such as JDZ11-3A, 6A,10A,JDZ11-3B,6B,10B.JDZX11-3AG,6AG,10AG,JDZX11-3BG,6BG,10BG,JDZX11-3A,6A,10A,JDZX11-3B,6B,10B.

Type	Rated voltage ratio(V)	Rated frequency (Hz)	Accuracy class and rated output(vA)				Limit output (vA)	Rated insulated level(kV)	Remarks
Type	Rated voltage ratio(V)	Rated frequency (Hz)	0.2	0.5	1	6P	Limit output (vA)	Rated insulated level(kV)	Remarks
JDZ11-3A	3000/100	50，60	40	100	200	100	300	3.6/25/40	As same as UNZ10
JDZ11-6A	6000/100		40	100	200	100	300	7.2/32/60
JDZ11-10A	10000/100		40	100	200	100	300	12/42/75
JDZ11-3B	3000/100		50	120	240	100	500	3.6/25/40
JDZ11-6B	6000/100		50	120	240	100	500	7.2/32/60
JDZ11-10B	10000/100		50	120	240	100	500	12/42/75
JDZX11-3A	3000/√3/100/√3/100/3		30	90	180	100	400	3.6/25/40	As same as UNZ10
JDZX11-6A	6000/√3/100/√3/100/3		30	90	180	100	400	7.2/32/60
JDZX11-10A	10000/√3/100/√3/100/3		30	90	180	100	400	12/42/75
JDZX11-3B	3000/√3/100/√3/100/3		40	100	200	100	600	3.6/25/40
JDZX11-6B	6000/√3/100/√3/100/3		40	100	200	100	600	7.2/32/60
JDZX11-10B	10000/√3/100/√3/100/3		40	100	200		600	12/42/75
JDZX11-3AG	3000/√3/100/√3/100/3			60			400	3.6/25/40
JDZX11-6AG	6000/√3/100/√3/100/3			60			400	7.2/32/60
JDZX11-10AG	10000/√3/100/√3/100/3			60			400	12/42/75
JDZX11-3BG	3000/√3/100/√3/100/3			60			600	3.6/25/40
JDZX11-6BG	0000/√3/100/√3/100/3			60			600	7.2/32/60
JDZX11-10BG	10000/√3/100/√3/100/3			60			600	12/42/75
