Home > Products > Voltage Transformer > Indoor Voltage Transformer
IEEE Voltage Transformer JDZ12-10(6,3)R IEEE Voltage Transformer JDZ12-10(6,3)R IEEE Voltage Transformer JDZ12-10(6,3)R IEEE Voltage Transformer JDZ12-10(6,3)R IEEE Voltage Transformer JDZ12-10(6,3)R

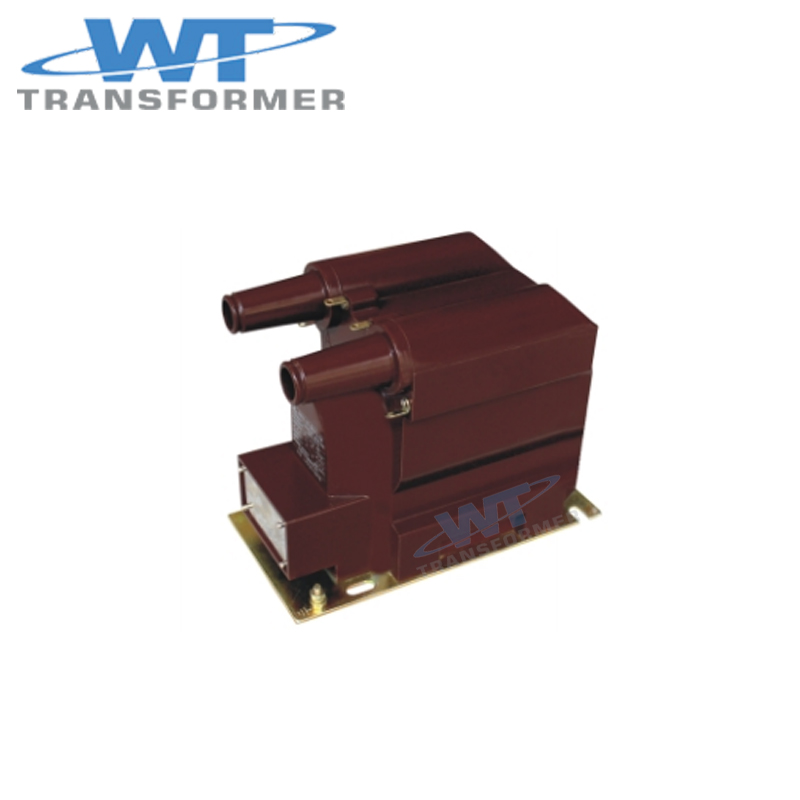

IEEE Voltage Transformer JDZ12-10(6,3)R

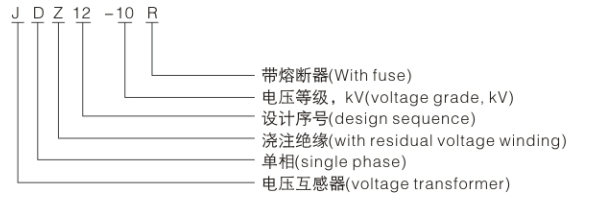

Type designation


Technical data

TypeRated voltage ratio(V)Accuracy class and rated output(VA)Max output (VA)Rated insulation
level(kV)
0.20.516P
JDZ12-10R10000/100/2201530605050012/42/75
JDZ12-6R6000/100/2207.2/32/60
JDZ12-3R3000/100/2203.6/25/40

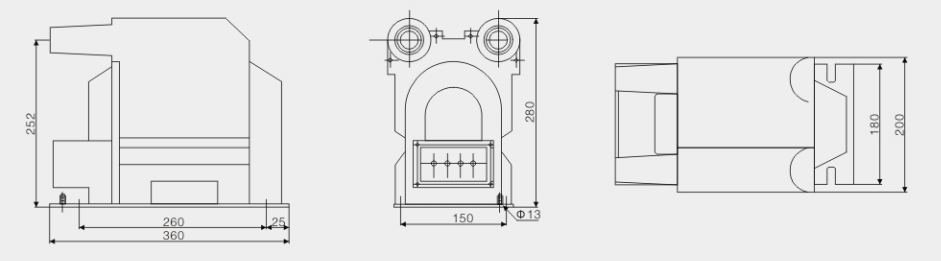

Drawing and dimention

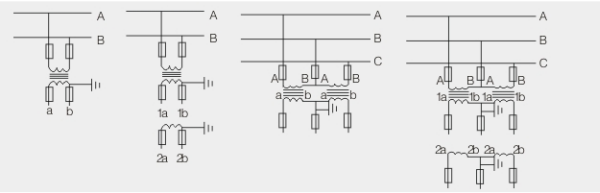

Principle diagram
