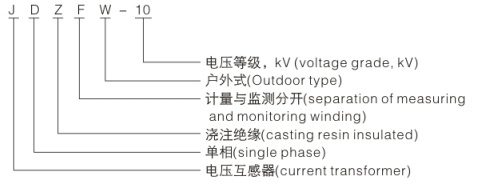

Type designation
Technical data
| Type | Rated voltage ratio(V) | Accuracy class combination | Rated output(VA) | Max output(VA) | Rated insulation level(kV) |
| JDZW-10 | 10000/100 10000/220 | 0.2 | 20 | 500 | 12/42/75 |
| 0.5 | 50 | ||||
| JDZFW-10 | 10000/100/100 10000/100/220 | 0.2/0.2 | 15/15 | 2x250 | |
| 0.2/0.5 | 15/20 | ||||
| 0.5/0.5 | 20/20 | ||||

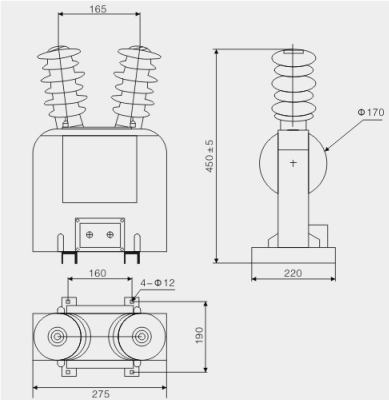

Drawing and dimention

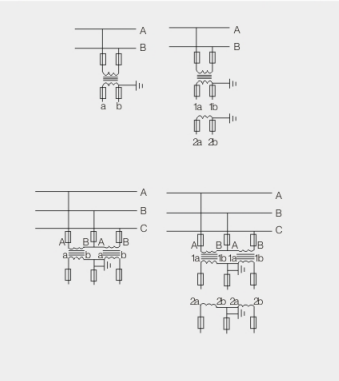

Principle diagram
