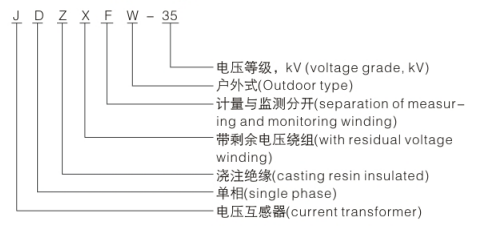

Type designation
Technical data
| Type | Rated voltage ratio(V) | Accuracy class combination | Rated output(VA) | Max output(VA) | Rated insulation level(kV) |
| JDZXW-35 | 35000/√3/100 /√3/100/3 | 0.2/6P | 50/100 | 1000 | 40.5/95/200 |
| 0.5/6P | 80/100 | ||||
| JDZXFW-35 | 35000/√3/100 /√3/100/√3/100/3 | 0.2/0.2/6P | 20/30/100 | 2x300 | |
| 0.2/0.5/6P | 25/25/100 | ||||
| 0.5/0.5/6P | 30/30/100 |

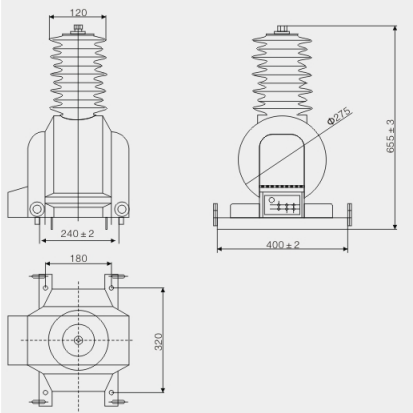

Drawing and dimention

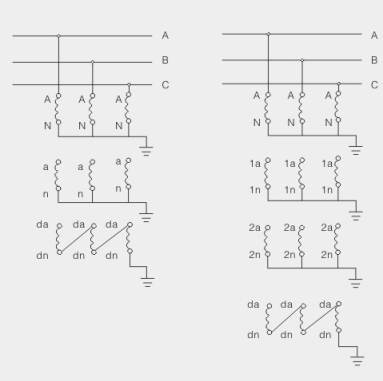

Principle diagram
