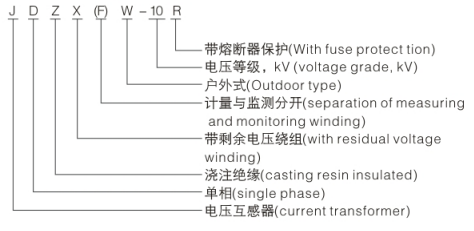

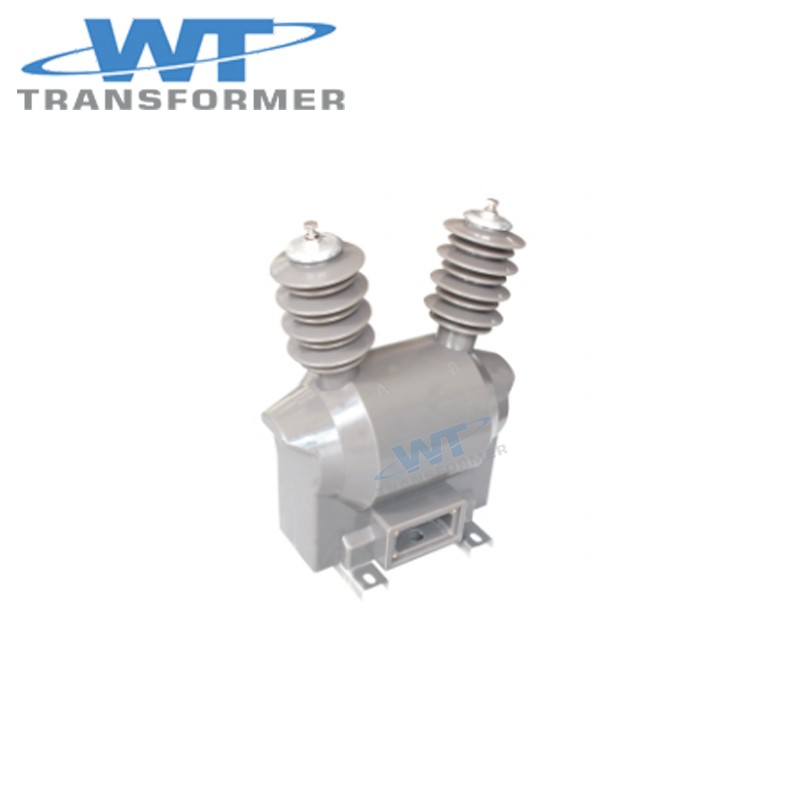

Type designation
Technical data
| Type | Rated voltage ratio(V) | Accuracy class combination | Rated output(VA) | Max output(VA) | Rated insulation level(kV) |
| JDZW-10R | 10000/100 10000/0.22 | 0.2 | 20 | 500 | 12/42/75 |
| 0.5 | 50 | ||||
| JDZFW-10R | 10000/100/100 10000/100/0.22 | 0.2/0.2 | 15/15 | 2x250 | |
| 0.2/0.5 | 15/30 | ||||
| 0.5/0.5 | 30/30 | ||||
| JDZXW-10R | 10000/√3/100/√3/100/3 | 0.2/6P | 20/100 | 500 | |
| 0.5/6P | 30/100 | ||||
| JDZXFW-10R | 10000/√3/100/√3/100/√3/100/3 | 0.2/0.2/6P | 15/15/50 | 2x250 | |
| 0.2/0.5/6P | 15/15/50 | ||||
| 0.5/0.5/6P | 20/20/50 |

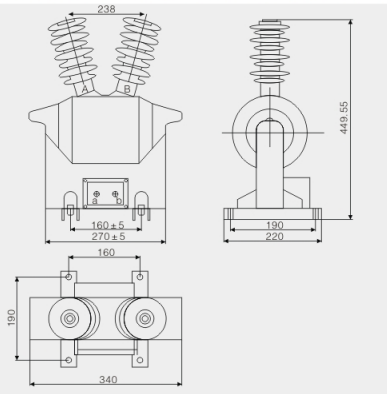

Drawing and dimention

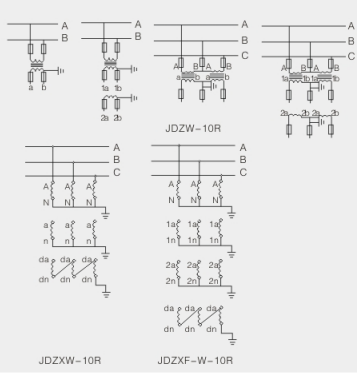

Principle diagram
