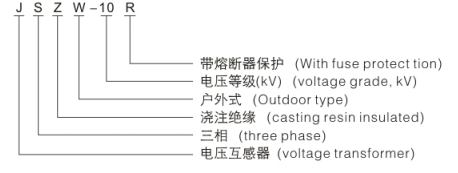

Type designation
Technical data
| Type | Rated voltage ratio(V) | Accuracy class and rated output(VA) | Max output(VA) | Rated insulation level(kV) | |||
| 0.2 | 0.5 | 1 | 6P | ||||
| JSZW-10R JSZW-6R JSZW-3R | 10000/√3/100/√3/100/3 | 15 | 30 | 60 | 50 | 300 | 12/45/75 |
| 6000/√3/100/√3/100/3 | 7.2/32/60 | ||||||
| 3000/√3/100/√3/100/3 | 3.6/25/40 | ||||||

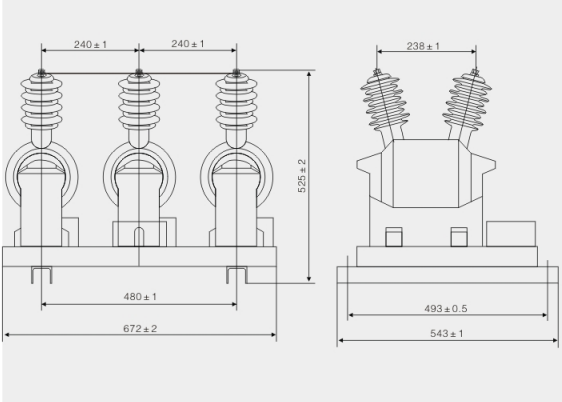

Drawing and dimention
Principle diagram
