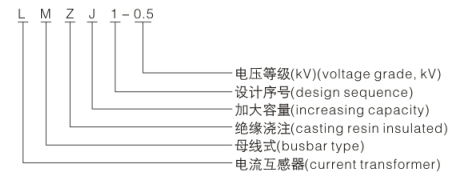

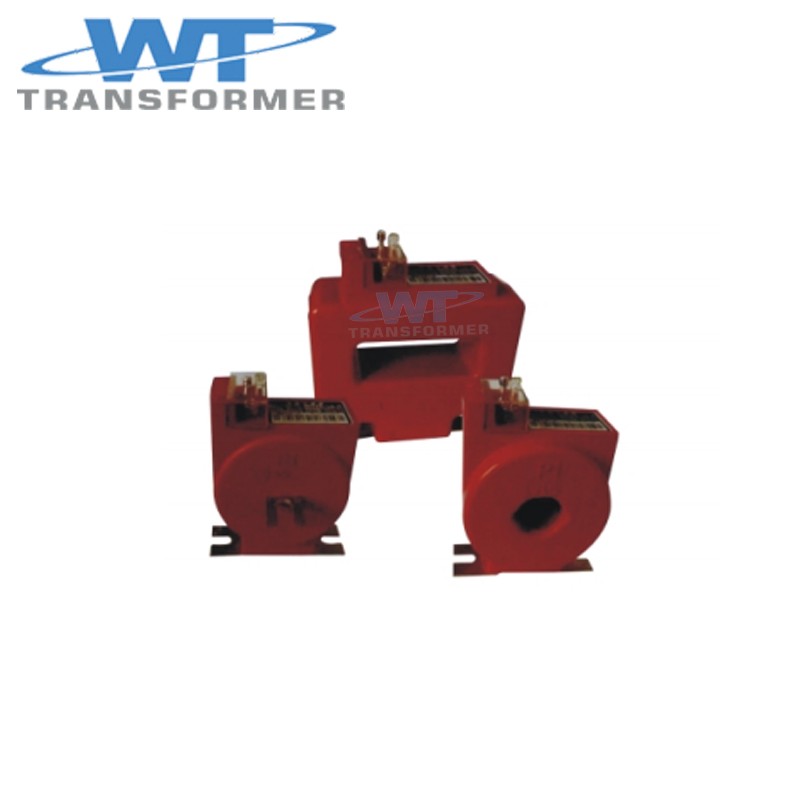

Type designation
Technical data
1.Rated insulation level: the secondary winding is able to withstand the power frequency test voltage of 3kV to ground.
2.Rated secondary current: 5A, 1A
3.Power factor of load: COSφ=0.8(lagging)
4.We can make high precision current tranformer of class 0.2S or 0.5S formeasuring.
| Type | Ratcd primary current[A) | Primary ampere-turn | Rated output(VA) | Dimension of hole(mm) | ||||
| 0.2 | 0.2S | 0.5 | 0.5S | 1 | ||||
| LMZ1-0.5 | 100 | 100 | 5 | 5 | 5 | 5 | 7.5 | 28 |
| 150 | 150 | 32 | ||||||
| 200 | 200 | |||||||
| 250 | 250 | |||||||
| 300 | 300 | |||||||
| LMZJ1-0.5 | 400 | 400 | 5 | 5 | 10 | 5 | 15 | 54x9 |
| 500 | 500 | |||||||
| 600 | 600 | |||||||
| 800 | 800 | 64x12 | ||||||
| 1000 | 1000 | 15 | 15 | 15 | 102x50 | |||
| 1200 | 1200 | |||||||
| 1500 | 1500 | |||||||
| 1600 | 1600 | |||||||
Note: Any special requirement may be negotiated with us.

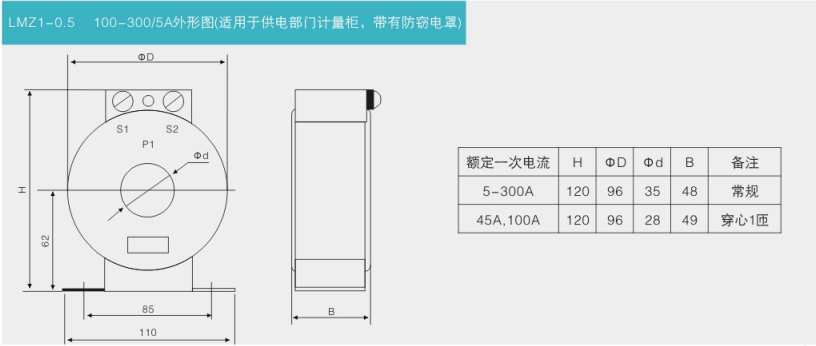

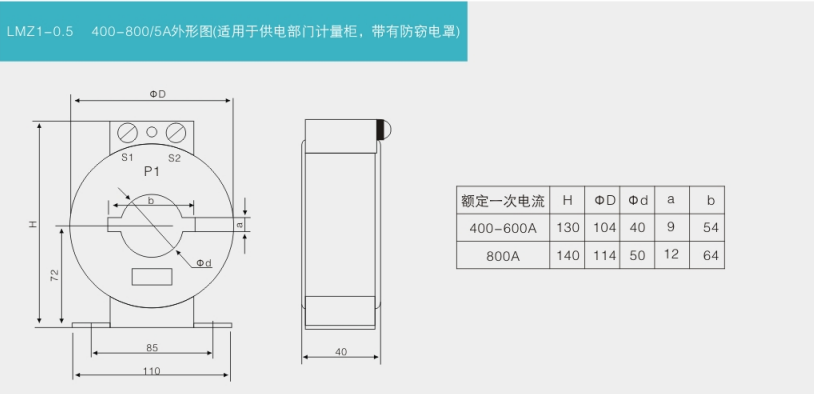

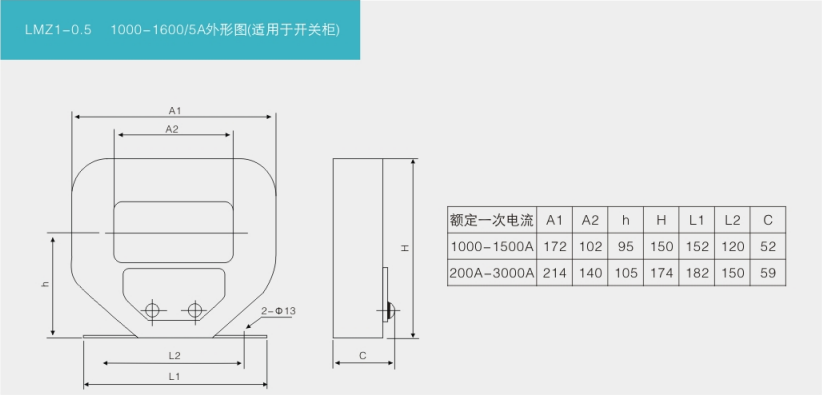

Drawing and dimention
