CSA Voltage Transformer JDZ(F)10-10A、JDZ(F)10-10B、JDZX(F)10-10AG、JDZX(F)10-10BG

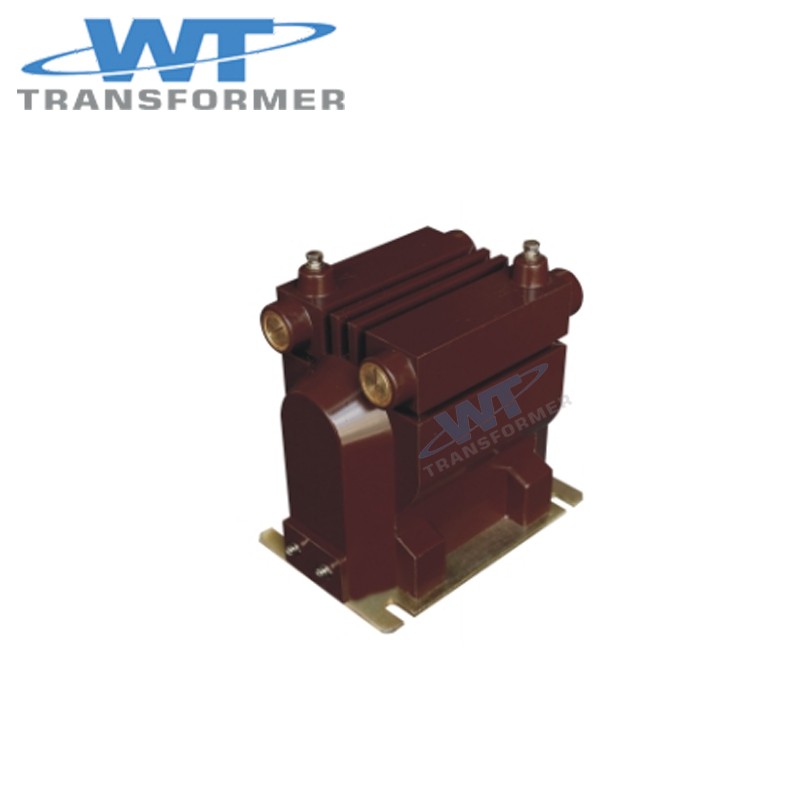

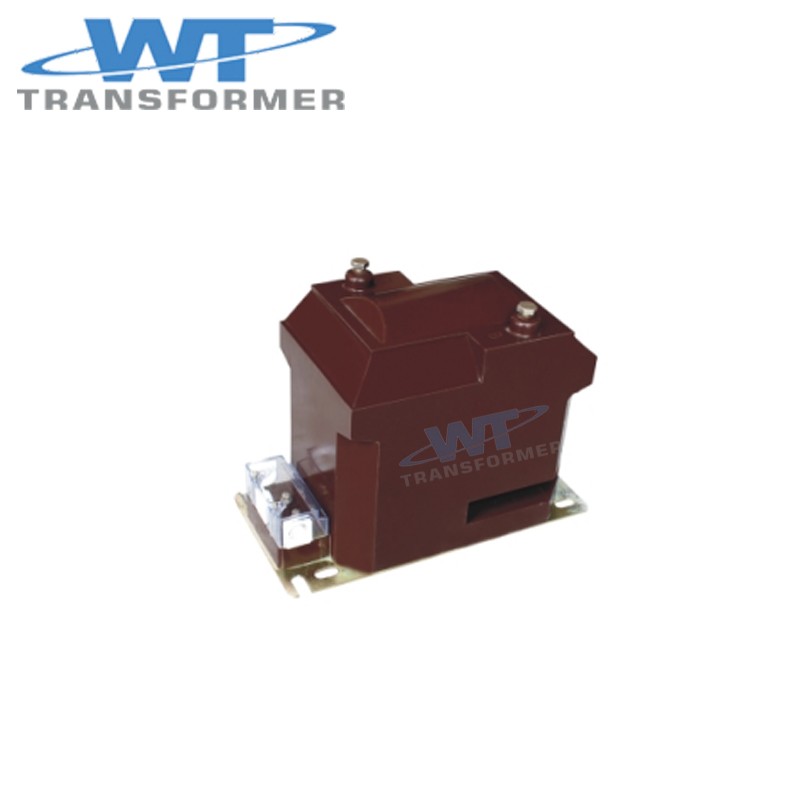

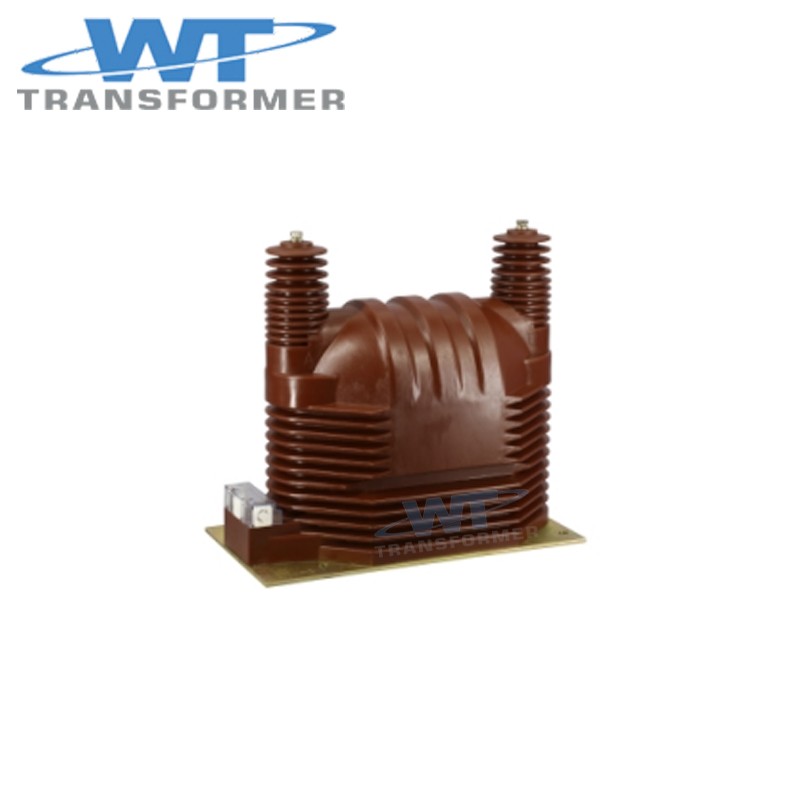

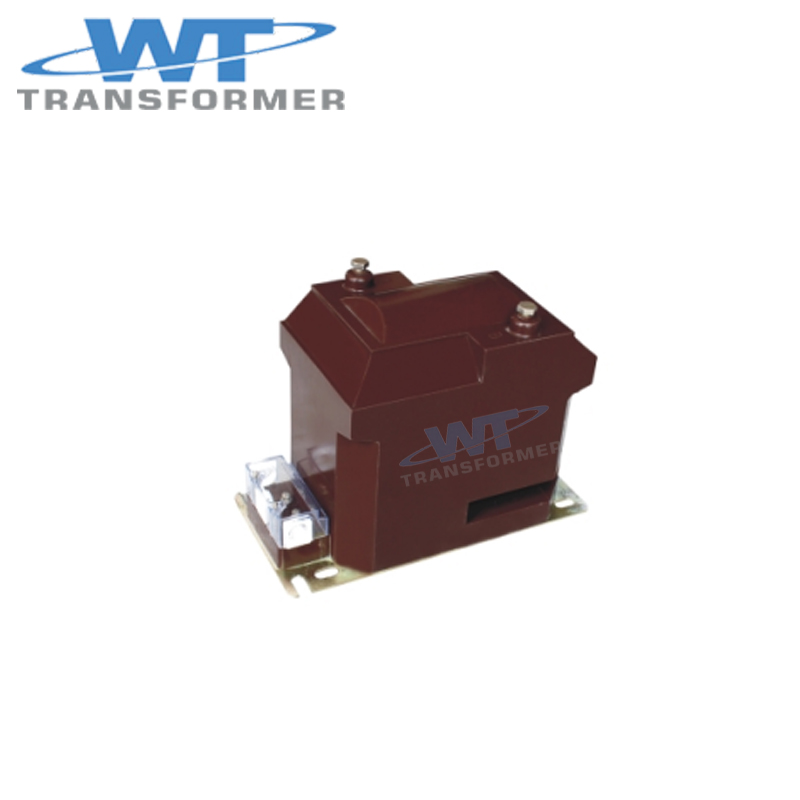

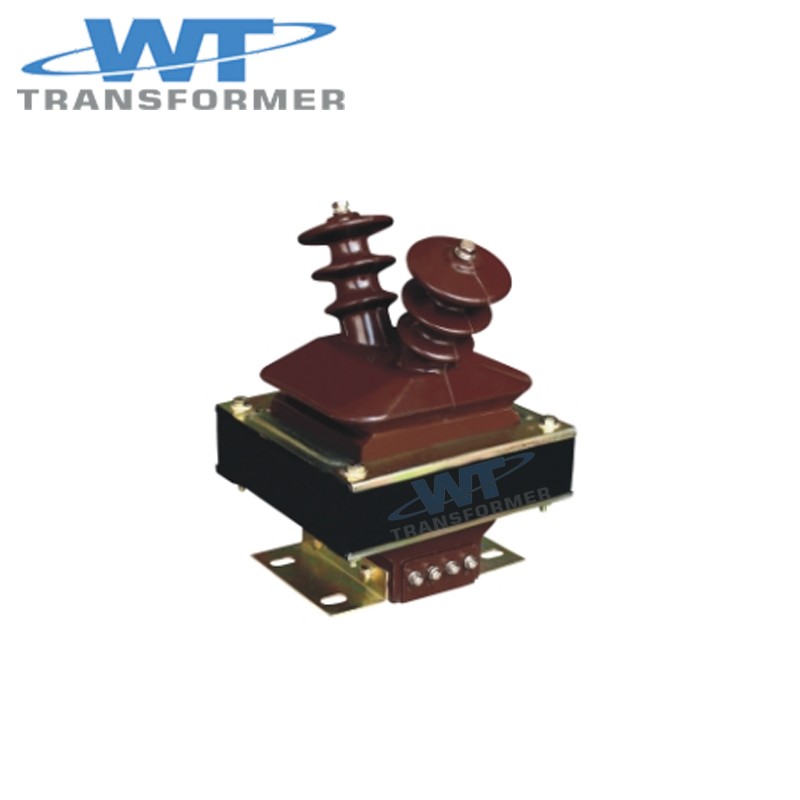

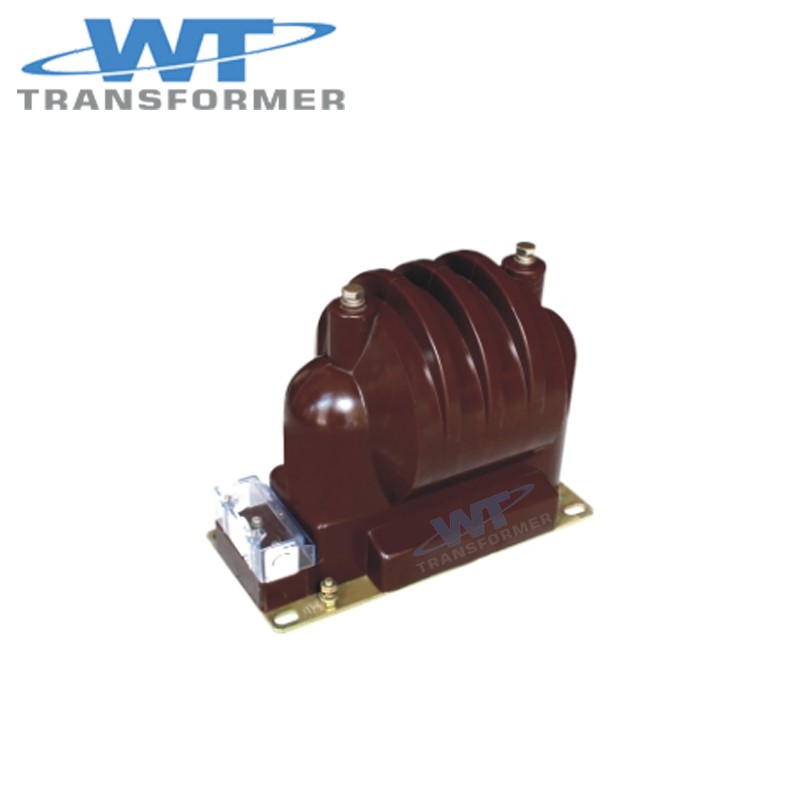

JDZ(F)10-10A JDZ(F)10-10B JDZX(F)10-10AG JDZX(F)10-10BG+.jpg

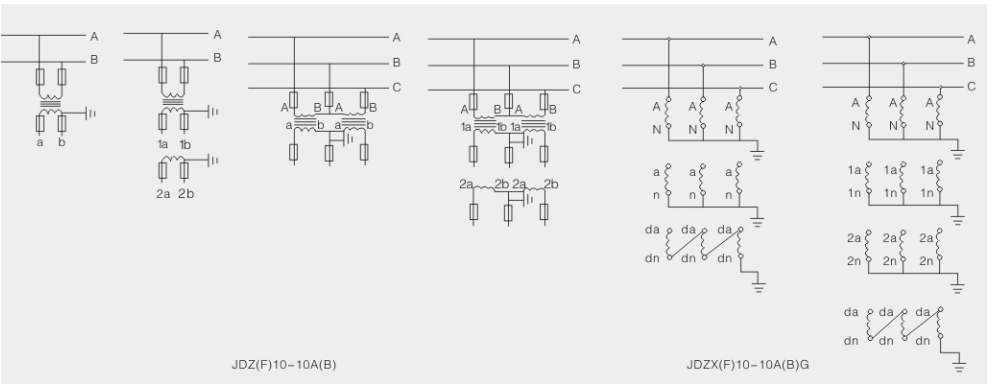

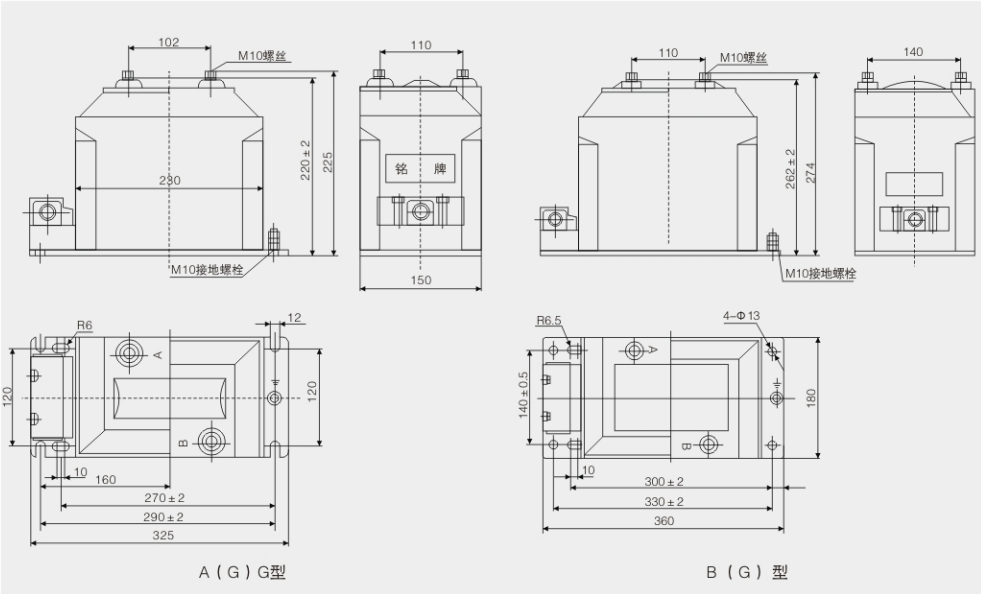

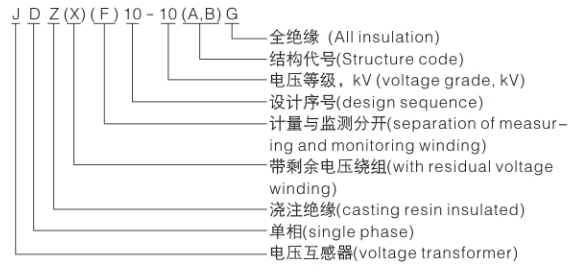

Type designation

Technical data

Type	Rated voltage ratio(V)	Accuracy class and raled output(VA)				Maxoutput(VA)	Rated insulation level(kV)
		0.2	0.5	1	6P
JDZ10-10A JDZ10-6A JDZ10-3A	10000100	15	30	50		200	12/42/75
	6000/100						7.2/32/60
	3000/100						3.6/25/40
JDZF10-10A JDZF10-6A JDZF10-3A	10000/100/100	10	10	50	50	2x100	12/42/75
	6000/100/100						7.2/32/60
	3000/100/100						3.6/25/40
JDZX10-10AG JDZX10-6AG JDZX10-3AG	10000/√3/100/√3/100/3	10	15	50	50	200	12/42/75
	6000/√3/100/√3/100/√3/100/3						7.2/32/60
	3000/√3/100/√3/100/3						3.6/25/40
JDZXF10-10BG	1000/√3/100/√3/100/√3/100/3	15	15	50	50	2x200	12/42/75
JDZXF10-6BG	6000/√3/100/√3/100/√3/100/3						7.2/32/60
JDZXF10-3BG	3000/√3/100/√3/100/3						3.6/25/40
JDZX10-10BG JDZX10-6BG JDZX10-3BG	10000/√3/100/√3/100/3	15	20	50	50	400	12/42/75
	6000/√3/100/√3/100/3						7.2/32/60
	3000/√3/100/√3/100/3						3.6/25/40
JDZ10-10B JDZ10-6B JDZ10-3B	10000/100	30	50	50		400	12/42/75
	6000/100						7.2/32/60
	3000/100						3.6/25/40
JDZF10-10B JDZF10-6B JDZF10-3B	10000/100/100	15	15	50	50	2x200	12/42/75
	6000/100/100						7.2/32/60
	3000/100/100						3.6/25/40
