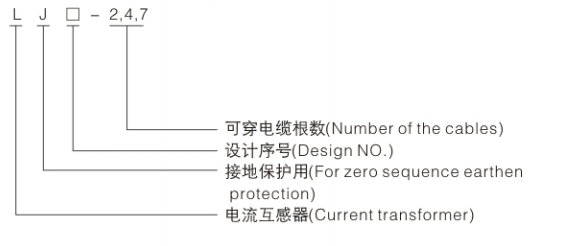

Type designation
Technical data
1. Because the cable protects the pramary main insulation, so the insulation characteristics of secondary winding are only examined. The secondary winding can be able to withstand the power frequency test voltage of 3kV to ground.
2. The sensitivity of the product shall meet the requirements listed in form.
| Type | Number of cables | Secondary loop | Rated current ratio(A) | ||
| Secondary output(Ω) | Adjustment current(A) | Sensitivity(A) | |||
| LJ-2 | 1~2 | 10 | 0.03 | 1~3 | 20/1 |
| LJ-4 | 3~4 | ||||
| LJ-7 | 5~7 | 40/1 | |||

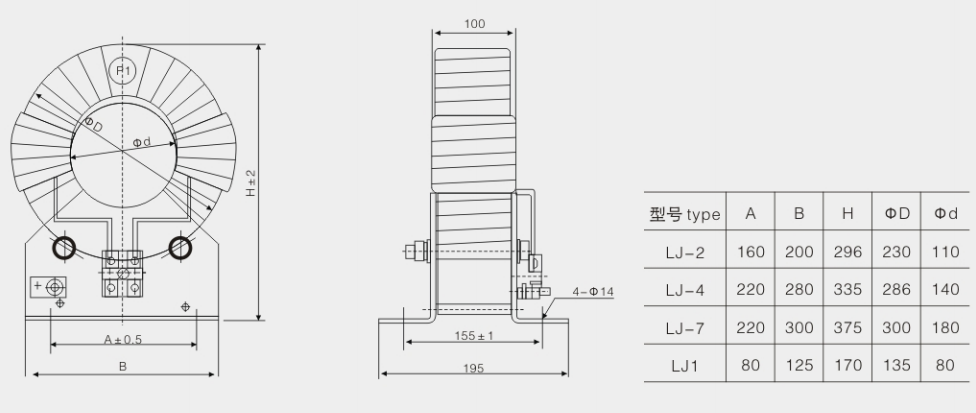

Drawing and dimention
