Technical data
| Product category | Measuring current transformer | Protective current transformer | ||||
| Rated current than I2/I1(A/A) | Accurate level rated load (VA) | Accurate level and rated load (VA) | ||||
| 0.5 | 1 | 3 | 10P20 | 10P15 | 10P10 | |
| 200/1 | 1 | 2.5 | 2.5 | 1 | 1 | 2.5 |
| 300/1 | 2.5 | 3.75 | 3.75 | 1 | 1 | 3.75 |
| 400/1 | 2.5 | 2.5 | 5 | 1 | 2.5 | 5 |
| 500/1 | 5 | 3.75 | 5 | 2.5 | 3.75 | 5 |
| 600/1 | 5 | 5 | 5 | 2.5 | 5 | 7.5 |
| 200/5 | 2.5 | 2.5 | 2.5 | 1 | 1 | 2.5 |
| 300/5 | 2.5 | 3.75 | 3.75 | 1 | 2.5 | 3.75 |
| 400/5 | 2.5 | 5 | 5 | 1 | 2.5 | 5 |
| 500/5 | 5 | 5 | 5 | 2.5 | 3.75 | 5 |
| 600/5 | 5 | 7.5 | 7.5 | 2.5 | 5 | 7.5 |
| Product category | Zero sequence current transformer | ||||
| Rated current than I2/I1(A/A) | Accurate level rated load (VA) | Accurate level and rated load (VA) | |||
| 0.5 | 1 | 3 | 10P10 | 10P5 | |
| 20/1 | 1 | ||||
| 50/1 | 2.5 | 1 | |||
| 100/5 | 1 | 2.5 | 1 | ||
| 200/5 | 2.5 | 2.5 | 2.5 | ||
| 300/5 | 2.5 | 2.5 | 5 | 1 | 3.75 |

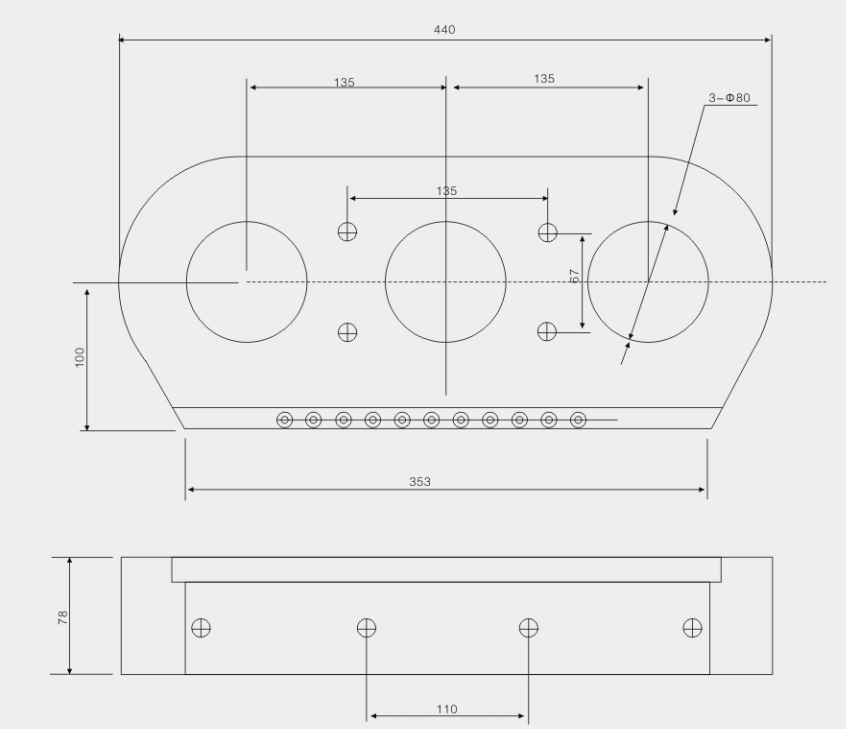

Drawing and dimention
