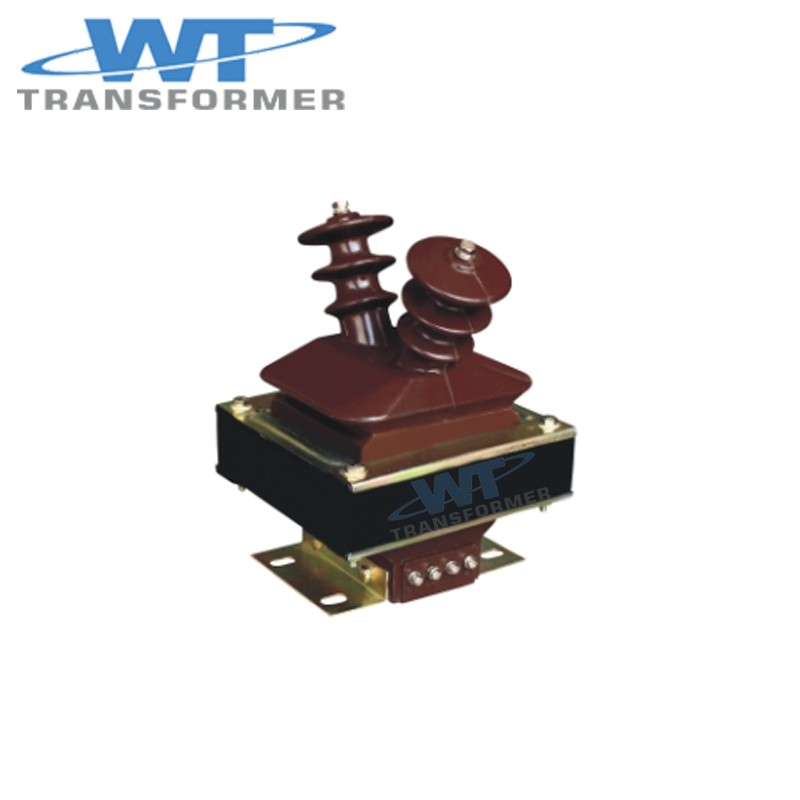

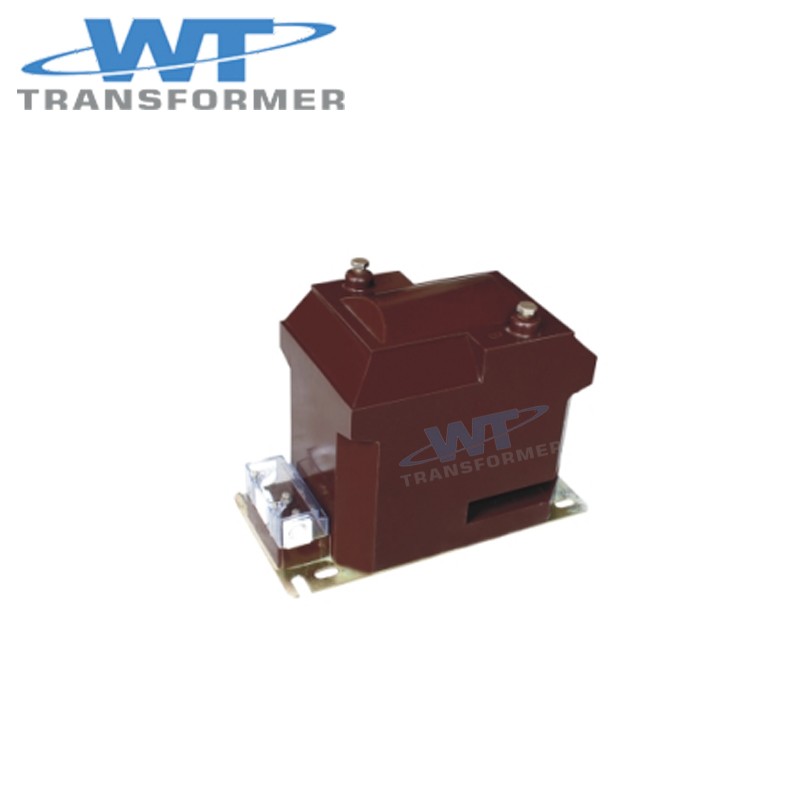

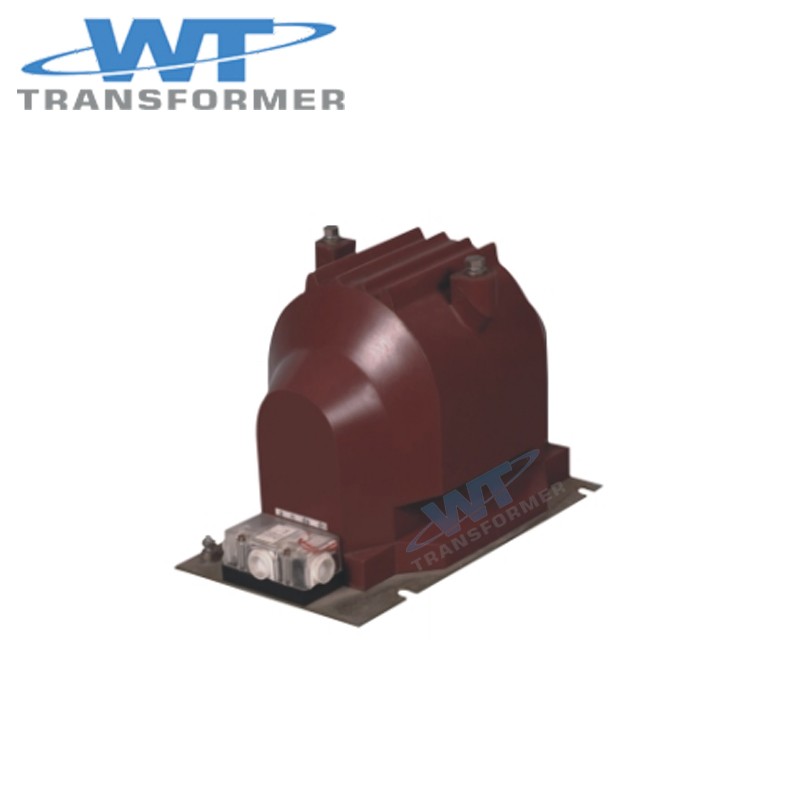

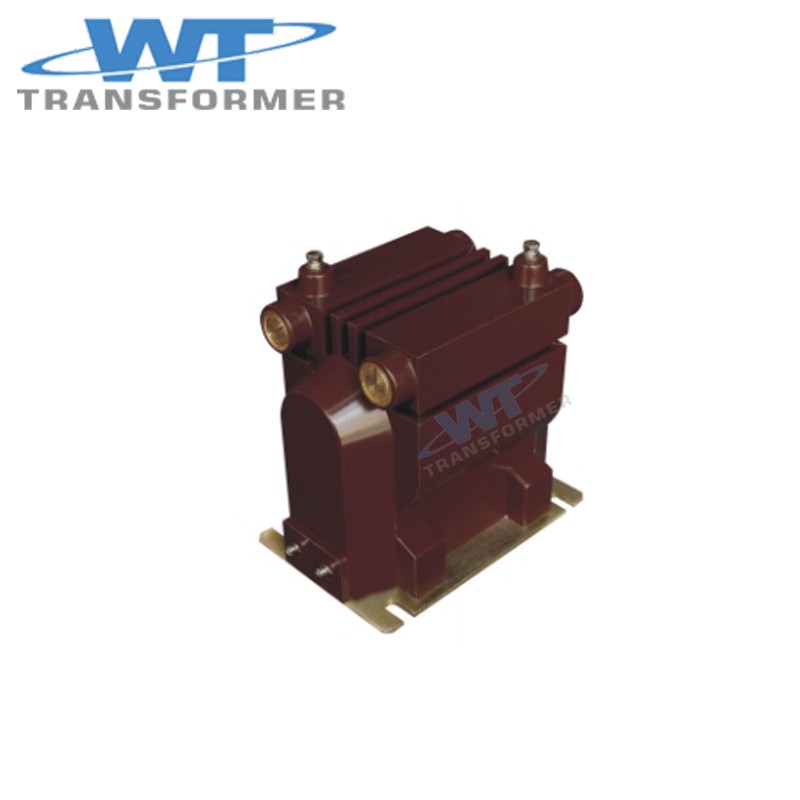

Technical data
The voltage transformer are in accordance with GB1207 and IEC60044-2 standards.
Rated insulation level 12/42/75、7.2/32/60kV
Rated frequency 50Hz or60Hz
| Type | Rated voltage ratio(V) | Accuracy class combination | COSA=0.8 Accuracy class and relative rated output(VA) | Limiting thermal output of secondary winding(VA) | Weight(kg) | |||
| 0.2 | 0.5 | 1 | 6P | |||||
| JDZX9-10G1 JDZX9-6G1 | 10/√3/0.1/√3/0.1/3 6/√3/0.1/√3/0.1/3 | 0.2/6P 0.5/6P 1.0/6P | 70 | 150 | 300 | 100 | 600 | 43 |
| JDZXF9-10G1 JDZXF9-6G1 | 10/ 3/0.1/ 3/0.1/ 3/0.1/3 6/ 3/0.1/3/0.1/3/0.1/3 | 0.2/0.5/6P | 40 | 40 | 300 | 100 | 2x300 | |
Note: if user's data go beyond the above-mentioned scope, they may be subject to an agreement between manufacturer and purchaser.

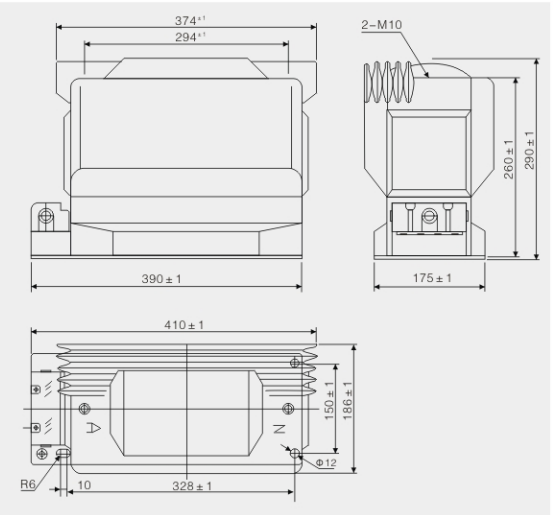

Drawing and dimention

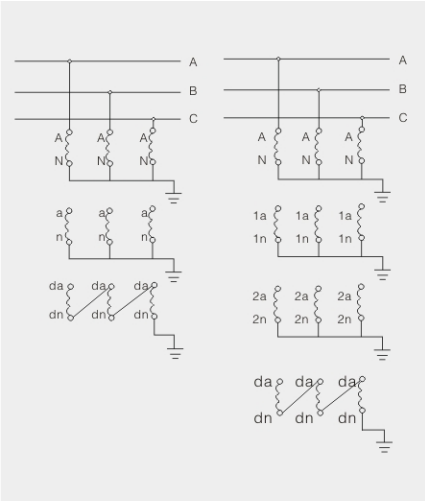

Principle diagram
